- This super small mono amplifier is surprisingly powerful - able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers, Inside the miniature chip is a class D controller, able to run from 2.0V-5.5VDC
- Since the amp is a class D, its very efficient (over 90% efficient when driving an 8 speaker at over half a Watt) - making it perfect for portable and battery-powered projects. It has built in thermal and over-current protection but we could barely tell it got hot. There's even a volume trim pot so you can adjust the volume on the board down from the default 24dB gain.
- The A and A- inputs of the amplifier go through 1.0uF capacitors, so they are fully 'differential' - if you don't have differential outputs, simply tie the Audio- pin to ground.
- The output is "Bridge Tied" - that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250KHz square wave PWM that is then 'averaged out' by the speaker coil - the high frequencies are not heard. All the above means that you can't connect the output into another amplifier, it should drive the speakers directly.

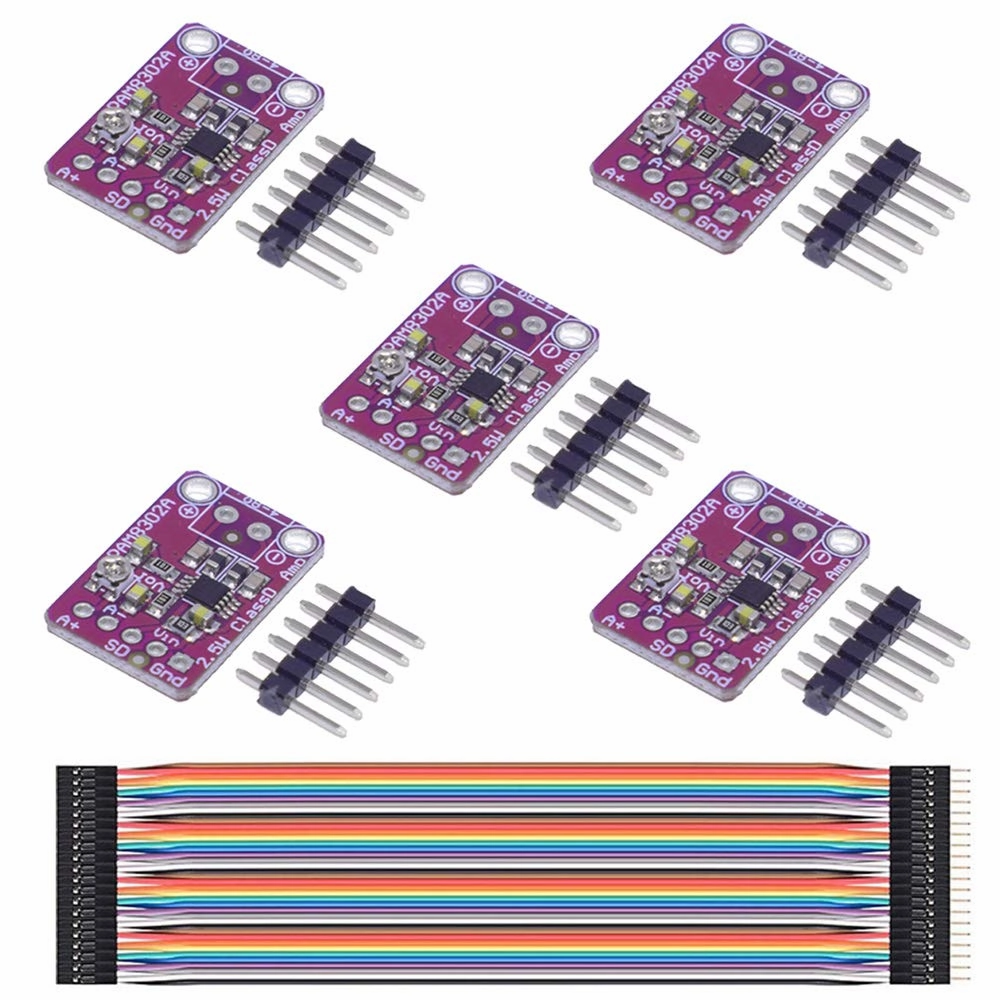

- Package Content:5 x PAM8302 Class D Amplifier Module, 1 x 11.8" Female-Male Dupont Cables 30 PIN
Feature:
Output Power: 2.5W at 4, 10% THD, 1.5W at 8, 10% THD, with 5.5V Supply
50dB PSRR at 1KHz
Filterless design, with ferrite bead capacitors on output.
Fixed 24dB gain, onboard trim potentiometer for adjusting input volume.
Thermal and short-circuit/over-current protection
Low current draw: 4mA quiescent and 1uA in shutdown mode
Package Included:
5 x PAM8302 Class D Amplifier Module
1 x 11.8" Female-Male Dupont Cables 30 PIN
- Package Dimensions : 6.03 x 2.09 x 0.55 inches; 3.53 ounces
- Date First Available : January 11, 2021
- Manufacturer : DAOKI
- Country of Origin : China
