- Ultra low jitter and high fidelity design using new receiver & D/A converter chip. Converts coaxial or toslink digital PCM/ LPCM audio signals to analog L/ R RCA and 3.5mm Jack audio simultaneously. NoteWhen connected to the Toslink and Coaxial cables at the same time, converter will give priority to Toslink input.
- Input Audio Connector: 1xToslink,1xRCA (Coaxial); Output Audio Connector: 2 x RCA(R/L), 1x3.5mm Jack; Powered by 5V/1A Power Adapter.(NOTE: Do Not Use Other Plugs, It Can Only Use 5V/1A Plug)
- Supports sample rates including 32KHz, 44.1KHz, 48KHz and 96KHz; 24-bit SPDIF Incoming Bit Stream on Left and Right Channels.(NOTE: Do not support 192kHz sample rate audio)
- Supports Uncompressed 2-channel LPCM or PCM Digital Audio Signal Output.(NOTE: 5.1 channel is incompatible, please set your DVD or player audio output to PCM or LPCM, Convert and transfer audio signal only, do not support audio decode
- Easy to Install and Simple to Operate; Can be Used for PS3, PS4, Apple TV, Xbox, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, etc.
Note:
1.Do Not Use Other Plugs,It Can Only Use 5V/1A Plug.
2.Please don't forget to set the audio output to PCM or LPCM as it is not compatible with 5.1 Channel Signal, such as Dolby Digital or DTS 5.1, Dolby-AC3.
3.This DAC may have some compatibility problem with Youtube or Netflix.
4.If you are using TV as the audio resource, please do not forget to set your TV audio output to PCM/LPCM(Steps: Device homepage--system setting--image and sound---voice setting--digital audio output--PCM/LPCM).
5.If you are using Panasonic TV as audio resource, please set TV audio output to SPDIF output.
6.If you are using Samsung TV as speakers, please turn on its external speakers(Steps: menu - sound - speaker settings - external speakers - on).
Product description:

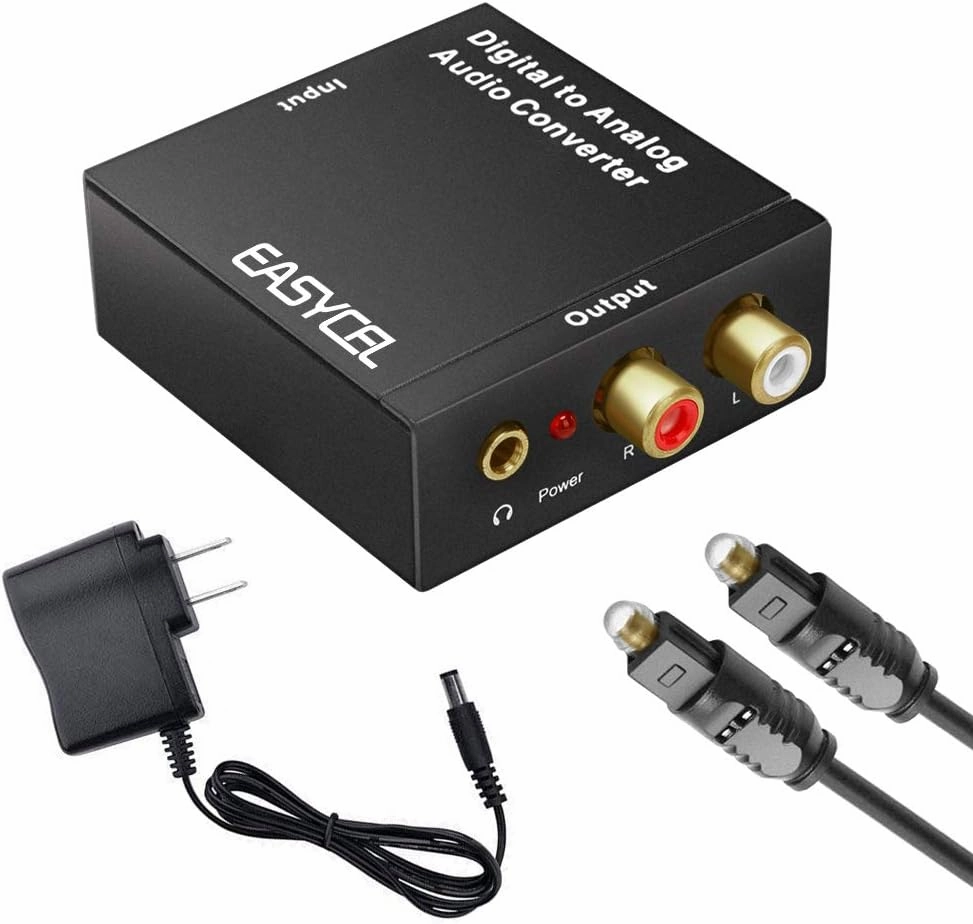

Easycel Digital to Analog Audio Converter converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio.
Features:
1.Available for connection to an external device such as an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable.
2.Supports uncompressed 2-channel LPCM digital audio signal input.
3.Supports sampling rate at 32KHz, 44.1KHz, 48KHz and 96KHz(Do Not support 192kHz).
4.24-bitS/ PDIF incoming bit stream on left and right channels.
5.Provides electromagnetic-noise-free transmission.
Specifications:
1.Housing: Full Metal
2.Weight: 90g
3.Input audio connector: 1 x Toslink, 1 x Coaxial
4.Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack
5.Powered by 5V/1A power adapter
6.Consumption: 0.5W (max)
7.Dimension: 75 x 55 x 22mm
Package List:
1* Easycel digital to analog audio converter
1* Toslink cable (Optical cable)
1* 5V/1A power adapter
1* User manual
Warranty:
This Easycel Digital to Analog Audio Converter Provides one-year Warranty.
