- Audio Sync & Clock Management: Low-noise oscillators for digital audio synchronizing, supporting word clock input/output. Slave I2S transfer for streaming audio with PLL-synchronized local clock distribution
- Streaming Protocol Support: Streaming supports Airplay2DLNASqueezeliteRoon BridgeHQNaaDaphileLMSSpotify
- USB & Digital Signal Handling: USB interface supports PCM768KHz, DSD1024 formats. FPGA digital signal reception and demodulation for COAX/Optical, supporting DoP64,DoP128,PCM384KHz
- Dual digital processing modes: synchronous and asynchronous, offering two distinct sound profiles. Adjustable pure decoding output levels for compatibility with different systems
- Dual Power Supplies: Dual toroidal linear power supplies with independent regulation for the CPU, network port, USB port, clock, PLL, and IO drivers

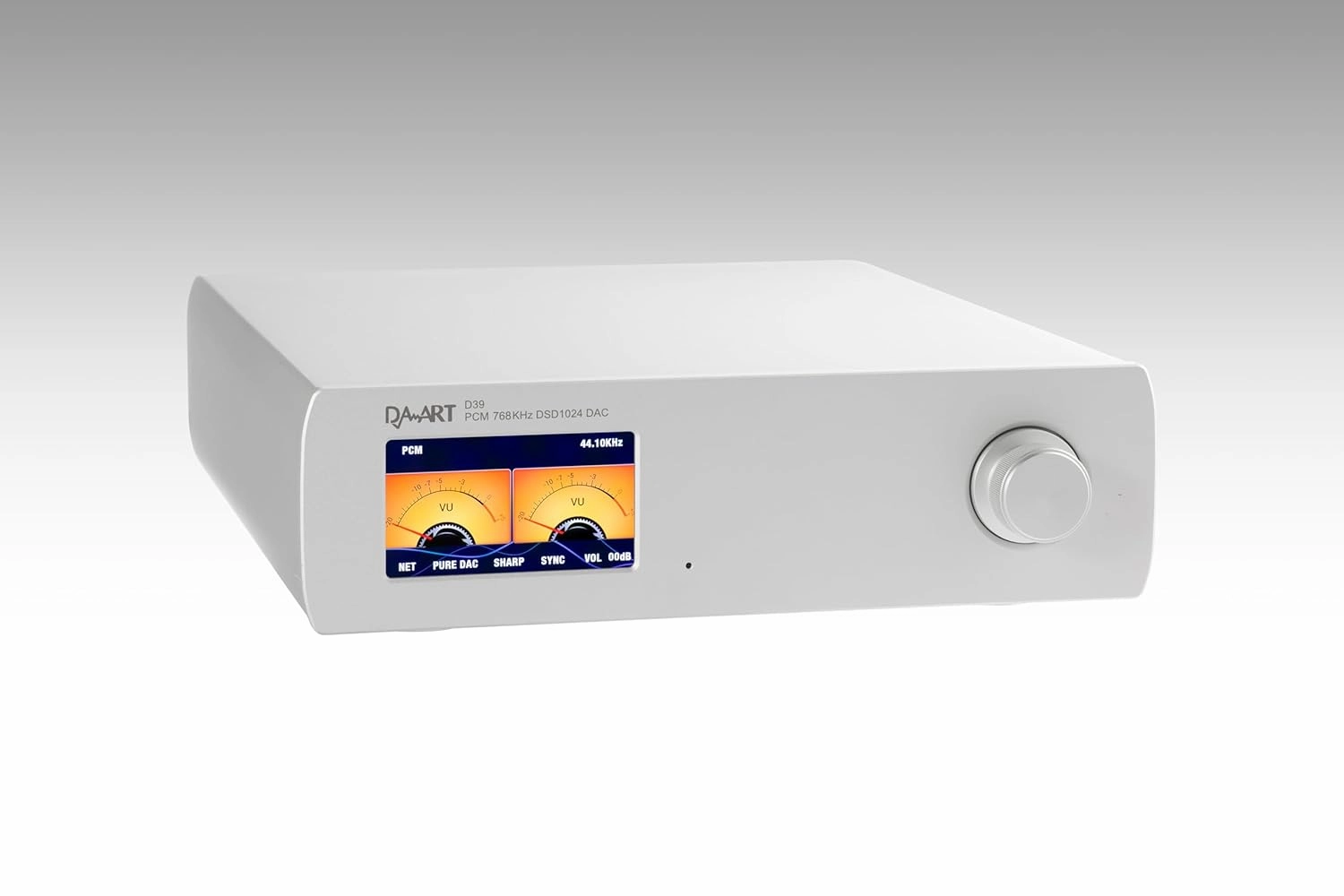

DAART D39 Network Streamer
Technical Specificaiton:
Digital Audio input:
NET, USB: PCM: up to 32Bit/768kHz
DSD: DoP64, DoP128, Native DSD64/128/256/512/1024
AES, Coaxial: PCM: up to 32Bit/384kHz
DSD: DoP64, DoP128
Optical: PCM: up to 24Bit/192kHz
DSD: DoP64
DAC output:
Output Level: Single-ended(RCA)3V/2.5V
Balanced (XLR)6V/5V
Freq. Response: 20-30KHz 0.15dB
THD N 0.0001%
Dynamic Range 125dB
SNR 125dB
Crosstalk <-120dB
Output <20
Power consumption <30W
Dimension 248mm x 210mm x 60mm (LxDxH)
Weight 2.4Kg
- Date First Available : February 26, 2025
- Manufacturer : Daart
- Country of Origin : China
