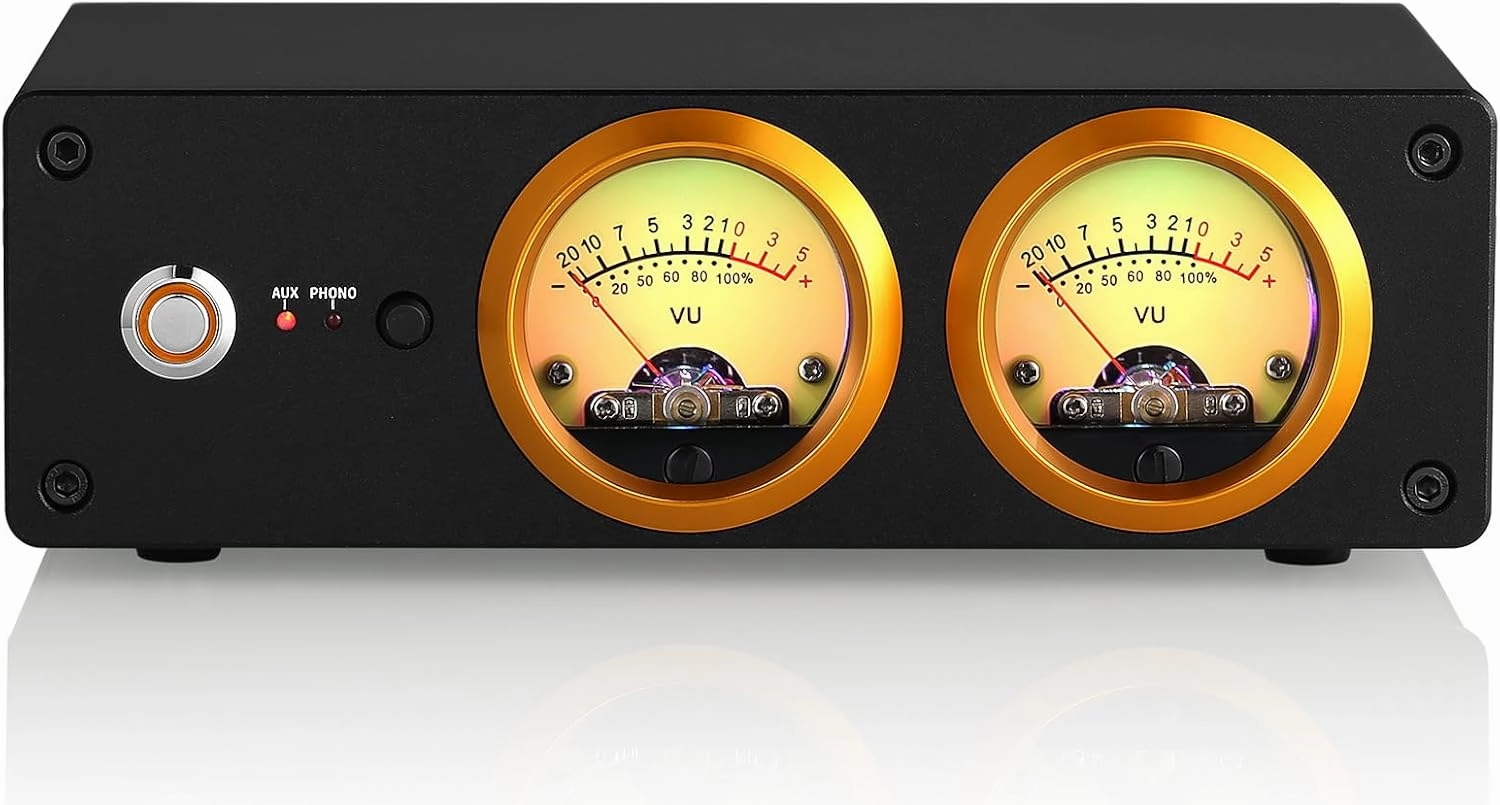

- T13 is a preamp with Stereo RCA and Phono(MM) inputs, compatible with most audio devices such as turntables, phones, computers, CD players, etc. to satisfy different demands. Stereo RCA output greatly improves the sound quality for amplifiers or active speakers, adds a 3.5mm headphone jack to easily drive all 16-300 headphones.
- Customized full-color VU meters, the color and brightness of backlight can be adjusted steplessly and freely; with built-in professional VU meter driver chip makes the pointer dancing more accurately, dynamically decorates the audio system and brings different enjoyment even in limited space.
- Better display and clean sound: AGC algorithm achieves ideal visual effects and avoids no display when input low signal and displays in full screen when input high; adds built-in 100K high-impedance input and power isolation circuits, no common ground noise even sharing the power with audio players, ensure the purity of sound source.
- Exquisite appearance and easy use: all aluminum CNC machined panel and gold-plated RCA terminals with longer service life, and durable adjustment knobs; powered by USB 5V, can be powered by power bank, phone charger, computer etc.,very suitable for home/office desktop audio system use to get better listening pleasure.
Warm Tips
1. Without DC 5V power adapter, please prepare it by yourself.
2. Headphone output with priority, please make sure the headphone has been disconnected if want RCA output.
3. VU meter displays the level of input source, and adjusting the volume of T13 will not change the VU swing range.
Parameters
Audio input: Stereo RCA / Phono MM
Audio output: Stereo RCA / 3.5mm Headphone jack
Input level:
RCA: 0.775V RMS
Phono: 0.005V RMS
Frequency response:
RCA: 20Hz-20KHz (0.5dB)
Phono: Ref to RIAA 2dB
Output level:
RCA: 1.5V RMS
Phono: 0.6V RMS
S/N ratio:
RCA: 106dB
Phono: 80dB
Headphone output power:
250mW @32
100mW @64
60mW @128
Headphone impedance range: 16-300
THD: 0.1%
VU meter color: multi-color for choice
Backlight level adjustable: Support
Save set-up: Support
Working voltage: DC 5V(0.6A)
Dimensions(W*D*): 178*118*55mm / 7*4.65*2.17in
Package dimensions(W*D*H): 235*180*90mm / 9.25*7.09*3.54in
Net weight: 730g/1.61lb
Package weight: 1000g/2.20lb
Packing List
1T13 Preamp
1USB Cable (Type-C)
1Manual
