- Versatile 3-in-1 Functionality: Combines a tube amplifier, preamplifier, and headphone amplifier, offering speaker outputs, a 3.5mm headphone jack, and a 3.5mm AUX output to connect additional amplifiers or active speakers/subwoofers for a multi-channel system.
- High-Power Output: Utilizes the Infineon 12070 classic IC, delivering 80W per channel at 4, effectively driving all 3-8 passive speakers for robust and dynamic sound.
- Dual Audio Inputs with Enhanced Compatibility: Features wireless Bluetooth 5.1 and wired stereo RCA inputs. The QCC5125 Bluetooth chip supports APTX-LL, APTX-HD, and LDAC for fast and lossless transmission, ensuring compatibility with most audio devices, including MP3 players, phones, computers, tablets, TVs, and CD players.
- Premium Build Quality: Designed with a durable aluminum alloy chassis and high-quality components to ensure longevity and superior audio performance, making it a reliable addition to any home audio setup.
- User-Friendly Design: Equipped with intuitive controls for volume, treble, and bass adjustments, allowing users to customize their listening experience easily. The compact size and sleek design make it suitable for various environments, from home theaters to desktop audio systems.
Warm Tips:
1. When the scale line on the treble and bass knob points to the direction of 12 o'clock, it means the gain is 0dB.
2. The 3.5mm headphone jack output is prioritized; banana speakers and 3.5mm AUX outputs will automatically disconnect when headphones are connected.
3. Pluggable tube socket with default JAN5725 vacuum tubes, which can be replaced by 6J1 / 6J2 / 6J3 / 6J4 / 6J5 / 6K4 / 6*1N / 5654 / 6AK5 / EF95 / 6*4N / 6*5N / 403B, etc.
Parameters:

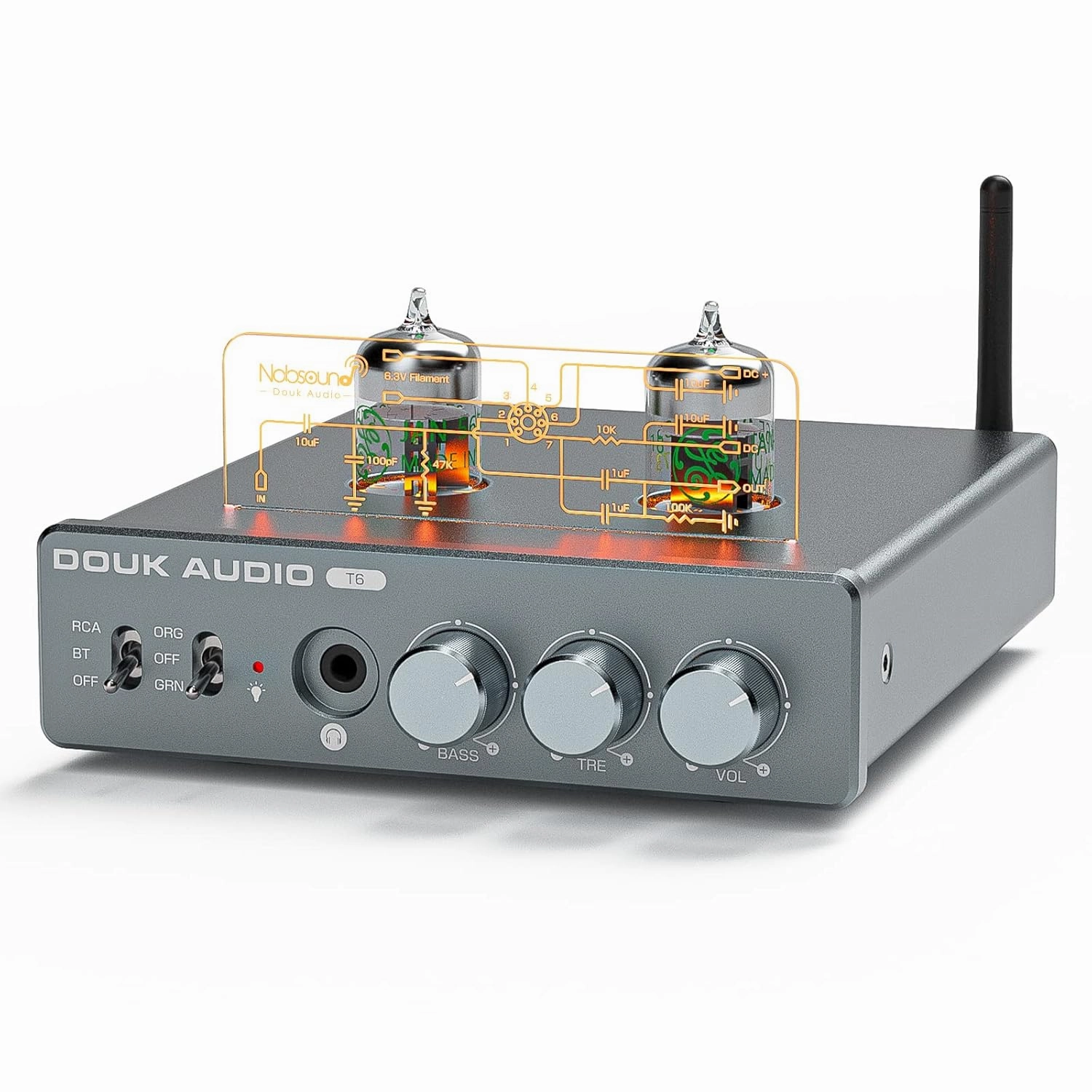

Model: Douk Audio T6
Audio input: Bluetooth 5.1 / stereo L/R RCA
Audio output: banana speaker jacks / 3.5mm headphone jack / 3.5mm AUX
Bluetooth chip: QCC5125 (support APTX / APTX-LL / APTX-HD / LDAC)
Amp IC: Infineon 12070
Sampling rate Bluetooth supported: 24Bit/96KHz
Max output power: 80W 80W (4)
Matched speaker impedance: 4-8
Maximum output power of earphone: 130mW2 (32)
Matched headphone impedance: 16-300
Treble / bass adjustment range: 6dB
Frequency range: 20Hz-20kHz (3dB)
Input sensitivity: 0.775V
SNR: 96dB
THD: 0.1%
Decorative LED color: green / orange / turn off
Working voltage: DC 15-24V
Dimensions (W*D*H): 132*142*35mm / 5.20*5.59*1.38in
Package Dimensions (W*D*H): 310*240*70mm / 12.20*9.45*2.76in
Net weight: 566g / 1.25lb
Package weight: 1.2kg / 2.65lb
Packing List:
1* T6 Amplifier
2* JAN5725 Tube
1* 24V Power Supply
1* Bluetooth Antenna
1* Acrylic Board
1* User Manual
- Package Dimensions : 11.97 x 9.06 x 2.99 inches; 2.56 Pounds
- Date First Available : August 23, 2024
- Manufacturer : Douk Audio
