- Powerful Hybrid Sound: Experience exceptional sound with 300W x2 output using JAN5654 tubes for a rich, warm audio experience combined with a TPA3255 class D amp for high efficiency and clarity, perfect for home theater and Hi-Fi systems.
- Bluetooth 5.1 Connectivity: Enjoy high-quality wireless audio with Bluetooth 5.1, supporting APTX-HD and LDAC, and connect multiple devices via AUX, RCA, or Bluetooth for versatile listening options.
- Dynamic Visual Appeal: Dual VU meters on a single dashboard not only provide a unique, retro aesthetic but also allow you to adjust volume and prevent distortion in real-time as the pointers move with the audio signal.
- Super Bass Control: Customize your listening experience with a dedicated Super Bass knob, adjusting frequencies as low as 20Hz for deep, impactful bass effects, in addition to standard treble and bass controls.
- Premium Construction & Design: Crafted with CNC-machined aluminum alloy for durability and luxury, and featuring high-quality capacitors and inductors from Germany and Japan to ensure audiophile-level performance with low distortion and noise.
- We recommend preheating the machine for 3-5 minutes before outputting audio, as the vacuum tubes need time to warm up and reach optimal performance. This is a characteristic of tube amplifiers.
Introduction:

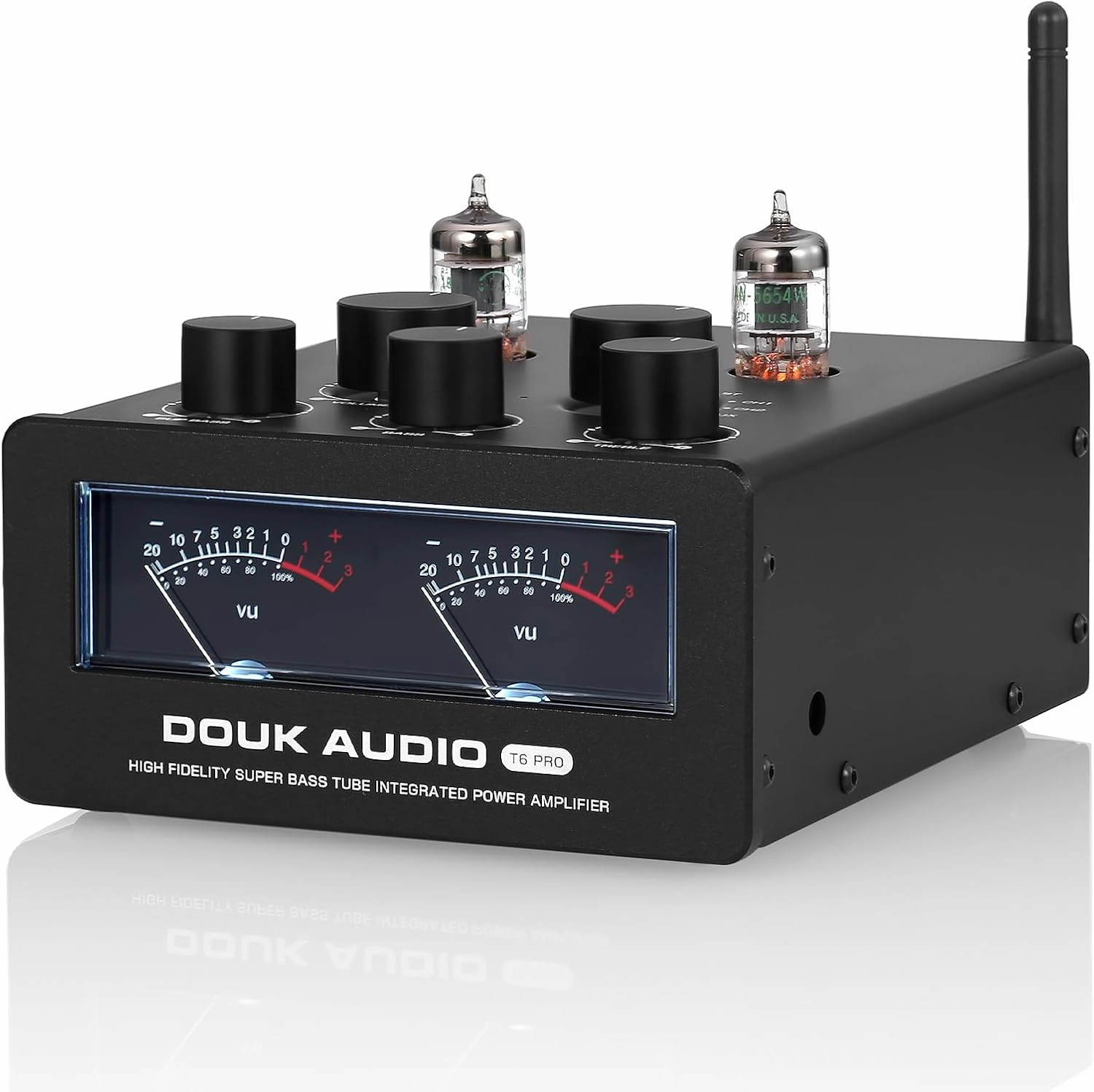

T6PRO is a compact tube amplifier designed by Douk Audio, combining cool design with exceptional performance. Adopting the comnbination of JAN5654 tubes and TPA3255 amp chip, the power output up to 300W for each channel can effortlessly drive 4-8 speakers, delivering impressive sound quality. With Bluetooth, 2 groups of stereo RCA and 3.5mm AUX inputs, 3.5mm AUX preamp output besides speaker jacks output, easily to build multi-channel systems. Besides common treble and bass control, super bass low to 20Hz is added to achieve shocking bass effects. A whole piece of cool dark VU meter is used with dual panels and pointers swinging in real-time with audio signal changes, to get both auditory and visual enjoyment.
Warm tips:
1.The 3.5mm AUX output is pre-amplified, its output level and the speaker jacks output are controlled by the main volume synchronously.
2.There are two sensitivity adjustments for VU meters on the side panel of T6PRO, one is responsible for the left channel and the other is for the right.
3. T6PRO default comes with JAN5654 tubes, can be replaced directly by 6J1, 6J2, 6J3, 6J4, 6J5, 6K4, 6*IN, 6*4N, 6*5N, 5725, 6AK5, EF95, 6BA6, 403B etc.
4. We recommend preheating the machine for 3-5 minutes before outputting audio, as the vacuum tubes need time to warm up and reach optimal performance. This is a characteristic of tube amplifiers.
Parameters:
Brand: Douk Audio
Model: T6PRO
Audio input: Bluetooth 5.1/2 groups of stereo RCA / 3.5mm AUX
Audio output: banana speaker jacks / 3.5mm AUX
Bluetooth version: QCC5125 (support APTX/APTX-HD/LDAC)
Sampling rated BT supported: 24bit/96Khz
Max output power: 300Wx2 (@4)
Matched speaker impedance: 4-8
Tone control range / center frequency:
Treble: 8dB / 10KHz
Bass: 6dB / 200Hz
Super bass: 10dB / 20Hz
Frequency response: 20Hz-20KHz (1dB)
Input sensitivity: 0.775V/0dBFS
Max output level of AUX: 3V
THD: 0.01%
SNR: 102dB
Working voltage: DC 24-48V
Dimensions(W*D*H): 140*165*69mm / 5.51*6.50*2.72in
Package dimensions(W*D*H): 250*228*110mm / 9.84*8.98* 4.33in
Net weight: 1.4kg / 3.09lb
Package weight (with 32V Power Adapter): 2.1kg / 4.63lb
Packing list:
1T6PRO Amplifier
2JAN5654 Tube
1DC 32V Power Adapter
1Bluetooth Antenna
1User Manual
