- Audio interface, For Stream Deck : Connect an XLR mic to your computer via USB. Designed to replace standalone interfaces.
- Loud and clear: 75 dB of gain to amplify your dynamic microphone. Brings condenser mics to life with 48 V Phantom Power.
- Saves space, Free a port: Stows away out of sight to minimize desk clutter. Connect both devices via one USB cable, not two.
- One for all: Control your entire setupaudio, video, anything.
- Easy install: Assemble in minutes using only your screwdriver

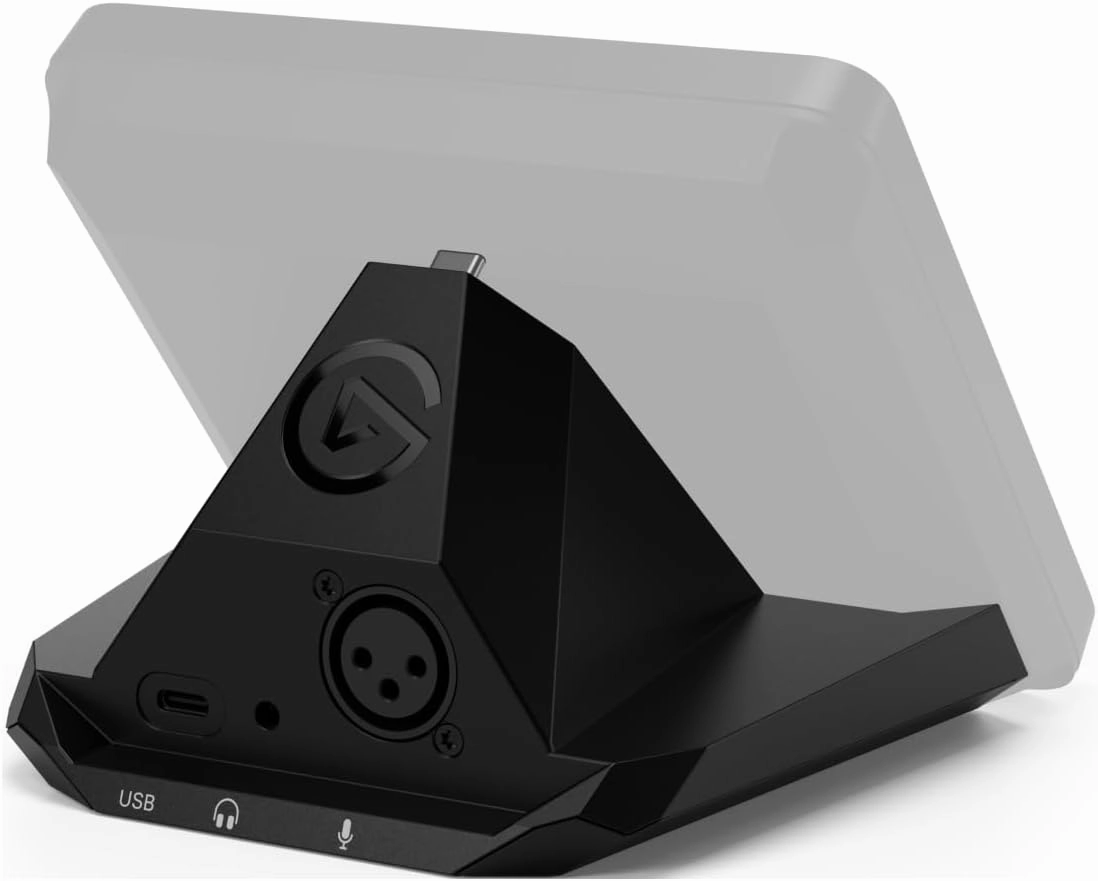

Equip your Stream Deck with XLR Dock, an audio interface like no other. It slides in then stows away to free up space, replacing bulky desktop mixers. Inside, a mighty preamp brings your microphone to life with up to 75 dB of ultra-low-noise gain and phantom power. Customize keys and dials however you like. Then mix, monitor, or control just about anythingfrom audio levels to scenes and shortcutsall with a single device. Both controller and dock share a USB cable, freeing up an extra port on your computer. Best of all, XLR Dock assembles in seconds using only a screwdriver. Tech specs Frequency response: 20 Hz 20 kHz Dynamic range: 100 dB (120 dB with Clipguard) Equivalent input noise (EIN): -130 dBV at 60 dB gain Gain range: 0 75 dB Phantom power: 48 V DC, 7 mA Max input level: 10 V at 0 dB gain (with Clipguard) Max output level: 77 mW Resolution: 24-bit Sample rate: 48 kHz Interface: USB 2.0, Type-C Dimensions: 137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 in Weight: 169 g | 5.96 oz System requirements Windows 10 (64-bit) or later macOS 13 or later
