- High quality chipsetTwo AK4499EX DACS Chip ; 1* AK4191 modulator; K2 ultra-low noise clock synthesizer; XMOS XU216 supports up to PCM768( with MQA-support ) & DSD512. MQA up support 384K.
- Multi function inputGustard A26 support USB/OPT/COAX/AES/LAN/Clock/IIS Input and RCA/XLR Output, meet your different hifi device needs. With Remote control & Touch Pane, easy to use.
- Low noise DACTwo specific toroidal transformers for audio application, isolated the digital analog power supply. Independent regulators with various stages of bypass capacitors can avoid all interference.
- Op-amp Transistors Parallel hybrid I/V convertors provide accurate and powerful output.
- Streamer / RendererEasy access to high-quality online streams. Roon, Upnp and Hqplayer NAA are supported.

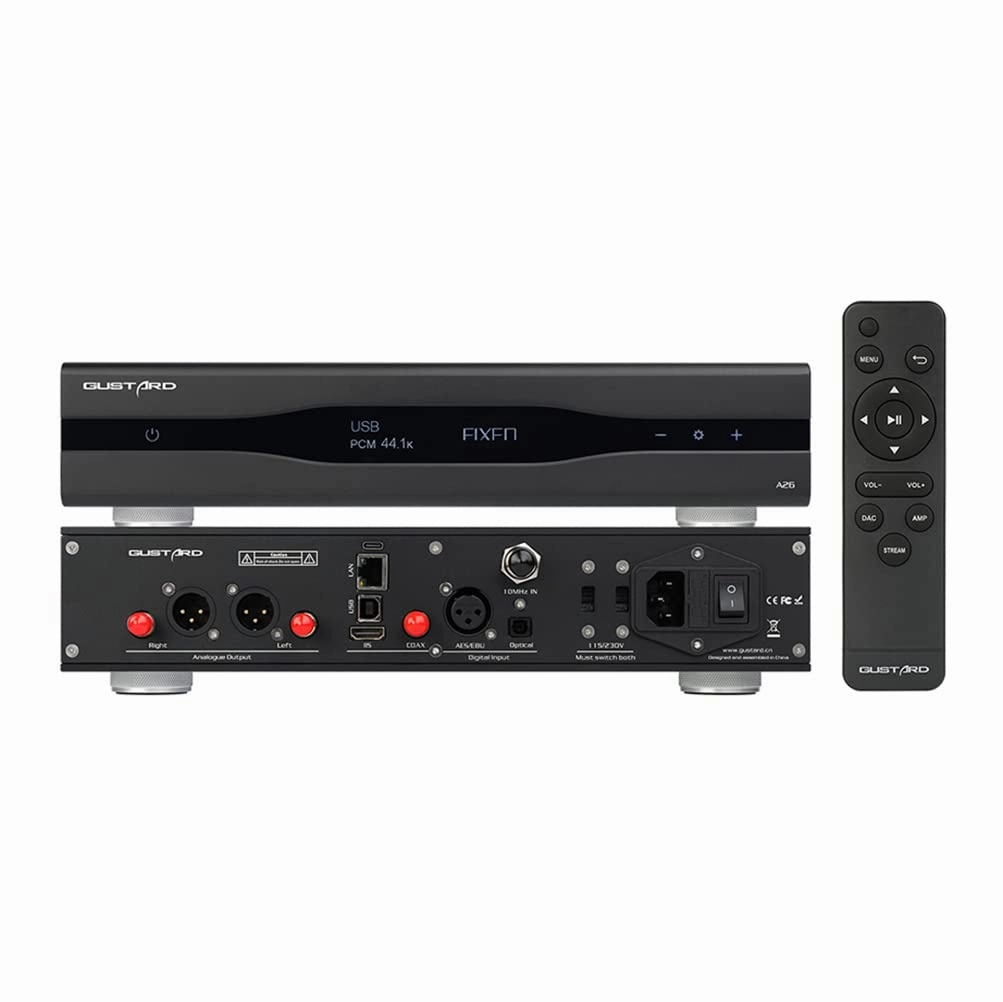

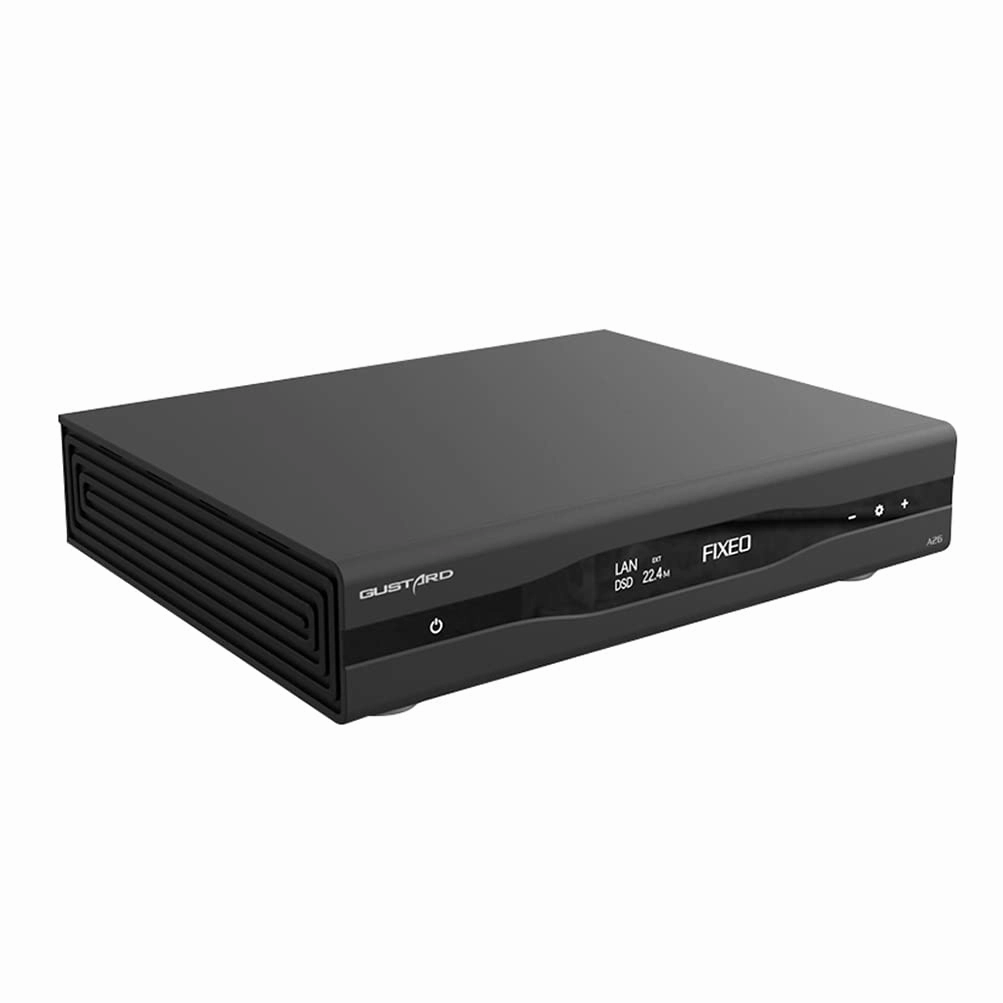

Gustard A26 MQA DAC 2xAK4499EX AK4191 MQA384K 768kHz/DSD512 Decoder
Features
AK4499EX DAC & AK4191 Modulator.
Roon bridge, upnp.
Clock synthesization with precision oscillators.
Exclusive technology over FPGA.
Parallel hybrid I/V convertors.
Specifically designed LPF circuits.
XU216 from XMOS, supports up to PCM768(with MQA support)& DSD512.
Two specific toroidal transformers for audio application.
Independent regulators.
Adjustable brightness with power saving mode.
Remote & Touch Pane.
Input:
IIS / USB / LAN : DSD64-DSD512 PCM 44.1K-768K, MQA 8X
COAX / AES / OPT : DSD64 ( DOP ) , PCM 44.1K-192K, MQA 8X
LAN : Roon / Upnp / HQplayer NAA ( more in the future )
10M Clock in : 50 BNC , 0dBm-20dBm, square wave 0.2-3.3V, sinewave 0.5-3.3V
Output
Frequency Response: 20-20KHZ/ -0.2db
Dynamic range:>127db
Signal-to-noise ratio:>126db
Crosstalk: -139db@1khz
THD N:<=0.0001%@1kHz
MD: 0.001%@ -1dbfs
RCA: 2.5vrms (VOLUME FIXED)100
XLR: 5.0vrms (VOLUME FIXED)100
XLR pinout: 1-Ground 2-Hot 3-Cold
XLR pinout: 1-Ground 2-Hot 3-Cold
Power Supply: AC115V 50/60Hz
Power Consumption:<30W
Size: 330x260x65mm(WxLxH) (protrusion not included)
Packing size: 420X360X175mm (WxLxH)
Weight: 7kg (with package)
Sandblasted aluminum alloy case: Black/Silver
Package list:
1 x A26
1 x AC cable
1 x USB cable
1 x Remote Control
1 x Gustard card
- Product Dimensions : 11.81 x 9.84 x 2.36 inches; 3.4 Pounds
- Date First Available : December 9, 2022
- Manufacturer : Gustard
