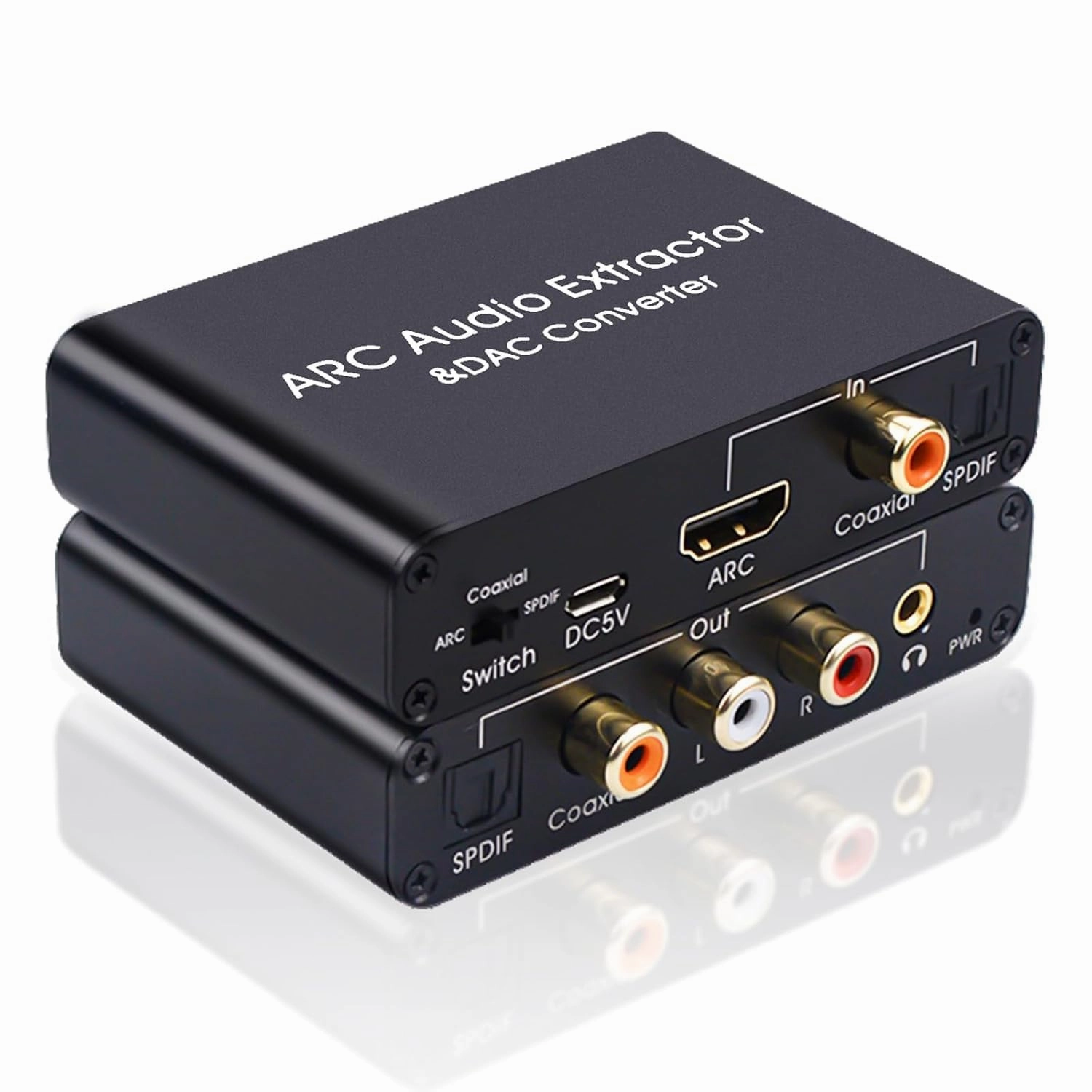

- Digital to Analog Audio Converter - Optical Toslink SPDIF, coaxial and HDMI (ARC) input, add input mode selection switch, reduce unnecessary wiring trouble when switching input interface. Optical Toslink SPDIF coaxial and stereo L/R 3.5mm jack outputs simultaneously, converting digital PCM/LPCM audio signals to analog output for HD DVD home theater systems.

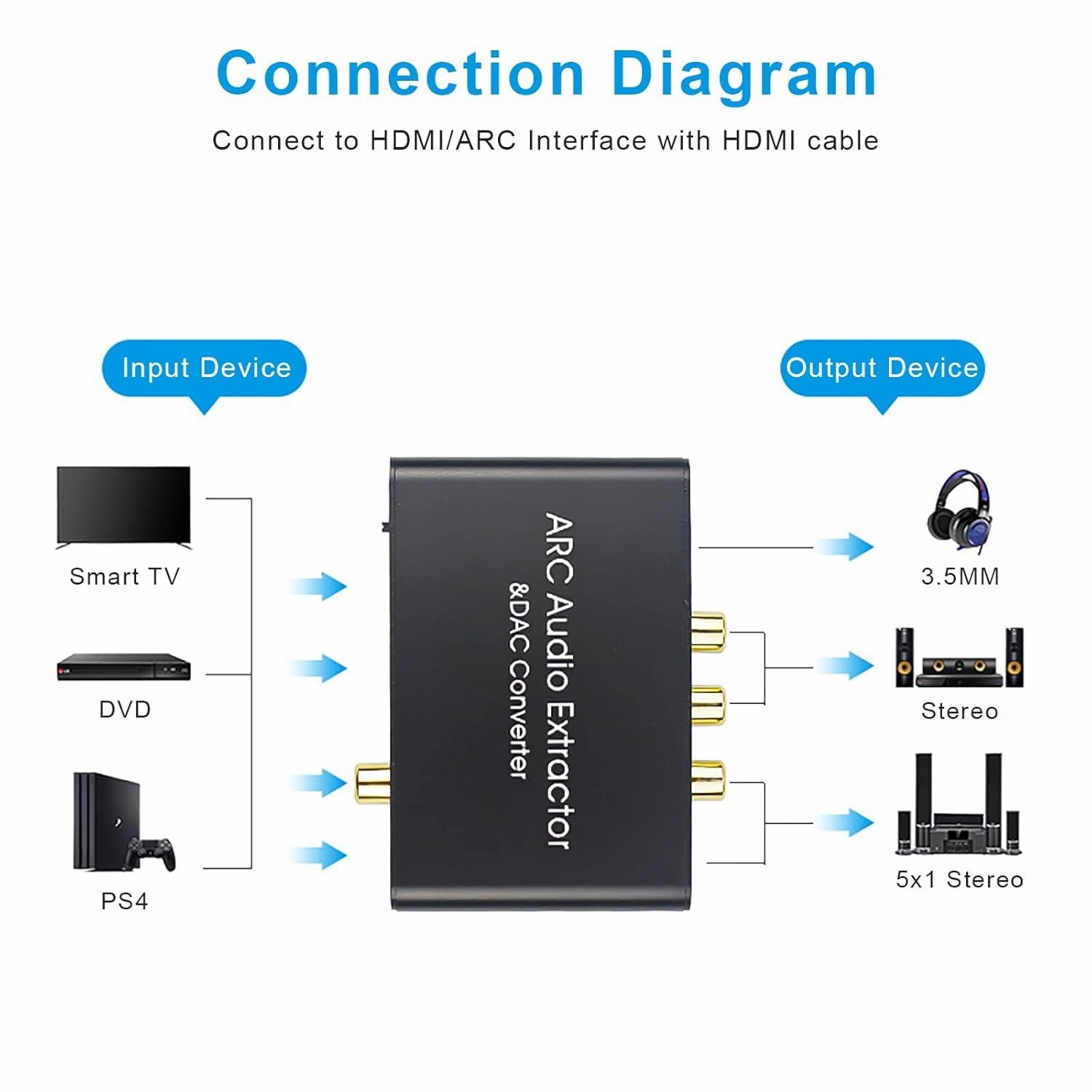

- Audio Synchronous Output - The HDMI ARC adapter can output audio from HDMI(ARC), Optical/Toslink/SPDIF and coaxial interfaces simultaneously to Optical/Toslink/SPDIF coaxial and 3.5mm L/R jacks via a DAC audio converter. Note: It is not compatible with Dolby AC3/ Dolby Digital etc. Please set the audio output to PCM or LPCM before use).
- 192KHz Sampling Rate Implementation - It actually supports left and right channels with sampling rates at 32,44.1,48,96 and 192KHz, and 24-bit SPDIF incoming bit streams. Please use HDMI 1.4 cable (19 1). In ARC mode, the volume of the RCA and 3.5mm headphone output can be controlled via the TV remote control (CEC function).
- Plug and Play - easy to install and operate. Perfect audio converter DAC and HDMI ARC adapter extractor for audio output to bar speakers, amplifiers, speakers or headphones. Note: When using the ARC feature, make sure it is connected to the HDMI ARC port on your TV and switch to the "ARC" state.
- Wide Compatibility - Compatible with all ARC-enabled HDTVS and all bar speakers with optical/coaxial /L/R/3.5mm audio output ports. If ARC does not work, try unplugging the cable or replacing the HDMI cable, wait a few minutes to reconnect, and plug the converter into the power supply.
- Product Dimensions : 3.54 x 2.87 x 0.1 inches; 2.82 ounces
- Date First Available : July 22, 2024
- Manufacturer : AMANKA
- Country of Origin : China
