- Compatible with standard EIA-310 19-inch, 23-inch wide 2-post and 4 post server rack.
- Specially designed for extending your vertical rack rail inward or outward by 6"
- 4U Height, 6" Deep, Black Powder Paint Finish
- Heavy Duty 14 gauge (1.98mm) steel with square-holes for cage nuts support on one side and oblong holes on other side for #10, #12, M5 and M6 rack screws. Made in USA
- Ideal for teleco equipment, switches, router, rackmount servers and shelf

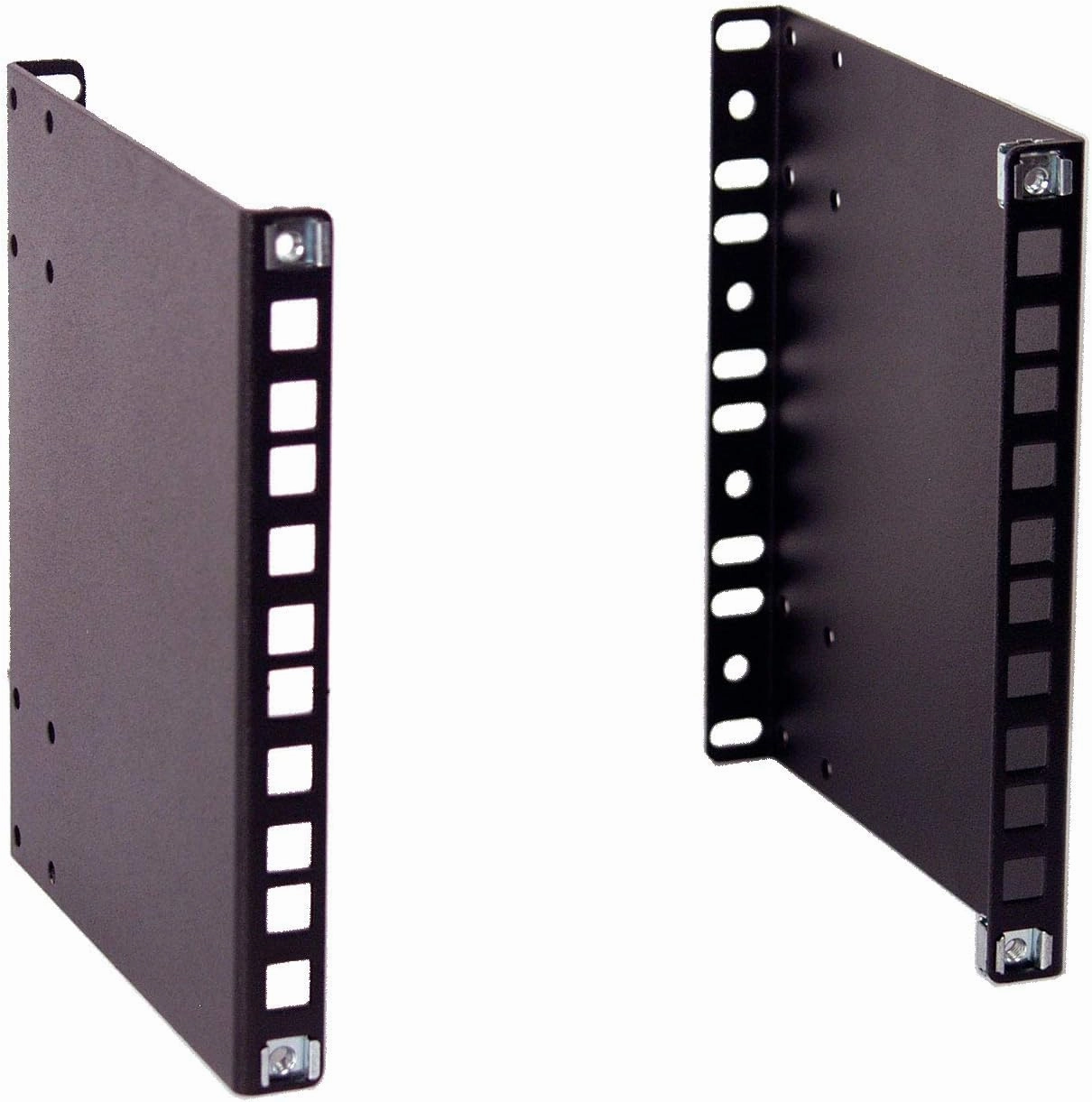

IAB106V10-4U is ideal for situation when your rackmount equipment cannot reach your rear vertical mounting rails. IAB106V10-4U offers you additional 5 extension depth you need to properly install your rackmount equipment. IAB106V10-4U is engineered for use in any standard 19, 23 or 24 rack cabinets. It is constructed with heavy duty 14 Gauge steel with a black powder paint finish. It has oval holes on one side supporting M5, M6, 10-32 and 12-24 rack screws. The square cage nuts holes on other side supports standard cage nuts such as M6, #10-32 and #12-24 for heavier weight support.
Our unique design allows customer to have direct access to mounting rack screw with bracket depth as short as 1.1. Unlike design from other manufacture, angleing screw driver from side of bracket is the only way to access mounting rack screws. Usually this installation method can lead to stripped screw head or loose screws.
IAB106V10-4U comes in different sizes. Please use our RACK extender selection guide at our web site to choose the right extender for your application.
We offer complete lines of rack extenders from 1U to 5U with depth ranging from 1.1 to 8 deep
