- 4U rackmount low profile 3.78" deep din rail panel made from 14 gauge (1.98mm) heavy duty sheet metal construction
- Compatibility: Fully compatible with standard EN500222 T35 35 x 7.5mm TOP HAT Din Rail, TS32 32 x 15mm G Section Din Rail and PVC 60 x 25mm Slotted Trucking wire management duct. All Din rail and PVC wire duct are detachable, removable and adjustable to different position.
- Industrial Standard: IRP1043D10 is fully compatible with EIA-310 19 rackmount 2-post or 4-post rack cabinet using #10-32, #12-24, and M5 rack screw and compact wall mount cabinet.
- Din Rail Ready: No additional drilling is necessary for mounting DIN Rail or PVC Wire duct on our DIN rail panel. Din Rail panel has pre-thread M4 mounting holes and square cage nuts holes for many different possible configurations. It comes with (2) 35 x 7.5mm TOP HAT DIN RAILs and (2) PVC slotted trucking wire management ducts. It is ready for your DIN Rail switches, controllers, contacts and wiring.
- Ideal for building smart home or building, industrial control panel for wind, solar and oil industries, waste water management, entertainment, factory automation and telecommunication. Made In USA

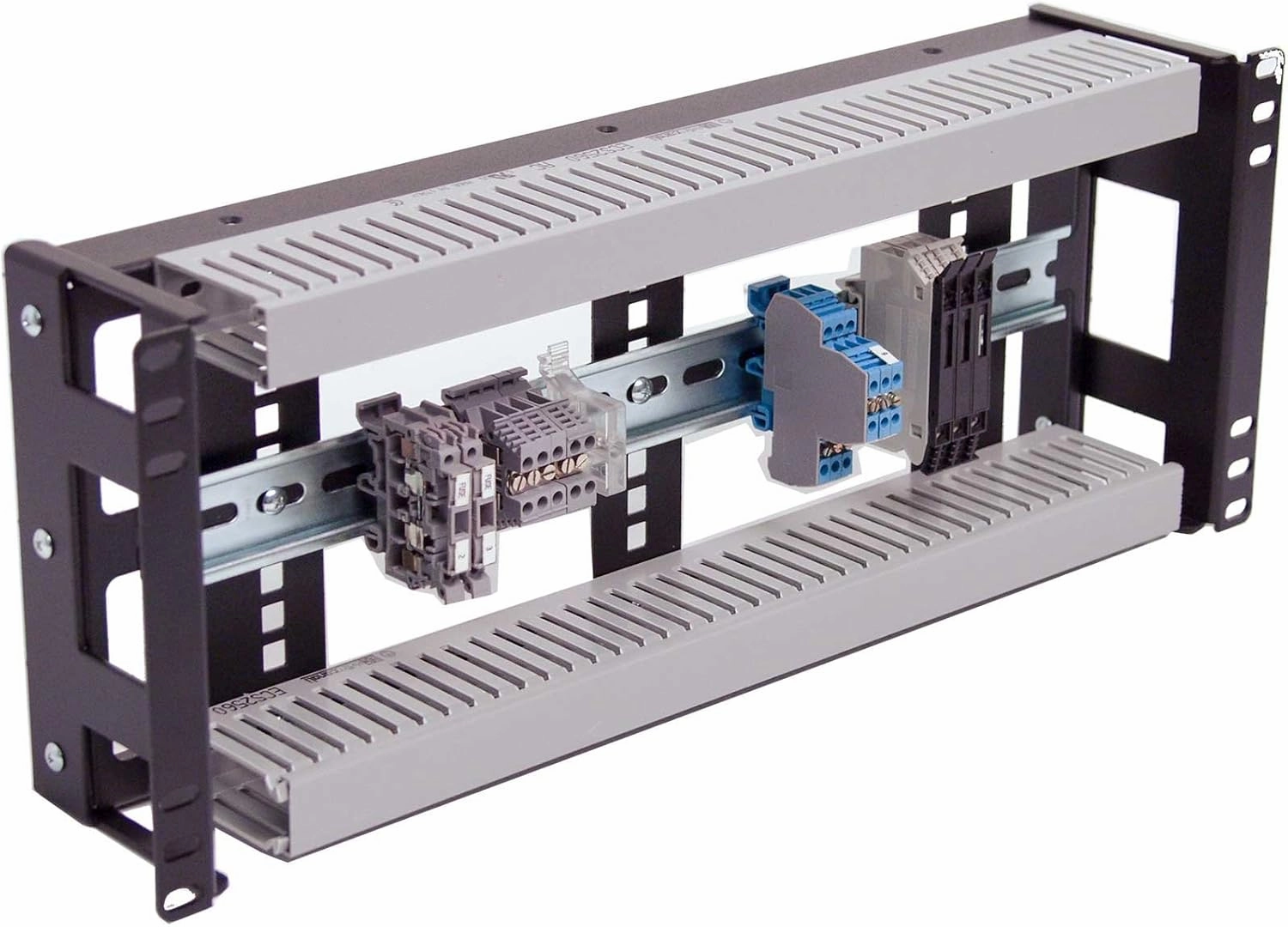

IRP1043D10 is a purpose build 4U Rackmount Din rail panel designed for a very limited space environment. It features 2.59" deep installation space for low profile Din Rail devices and equipment. This model offers you 2.59" depth x 4.96" height clearance for your Din Rail device and equipment. If you need more space, you can also remove the PVC wire management ducts. Multiple cable access holes on right and left side of the ear bracket offers multiple cable routing path for your project.
IRP1043D10 4U Din Rail panels are design with standard in mind. You can mount it on any standard 2 post, 4 post or wall mount 19 cabinet.
In addition to utilizing all of the benefits offered by using the standard 19 cabinet, our unique DIN Rail mounting system allows engineer to pack more DIN Rail equipment within the stander EIA-310 rack space than any other similar design on the market. You can provision the DIN Rail and PVC Wire Ducts horizontally, vertically or even at the rear to double your equipment density by using our IRP1043D10 din rail panels.
IRP1043D10 Din rail panel offers the simplest way to route, organize, and store large bundles of control cables connected to your Din Rail Equipment.
IRP1043D10 is the most cost effective way to house your DIN Rail equipment and controllers.
For qty discount, please contact us.
