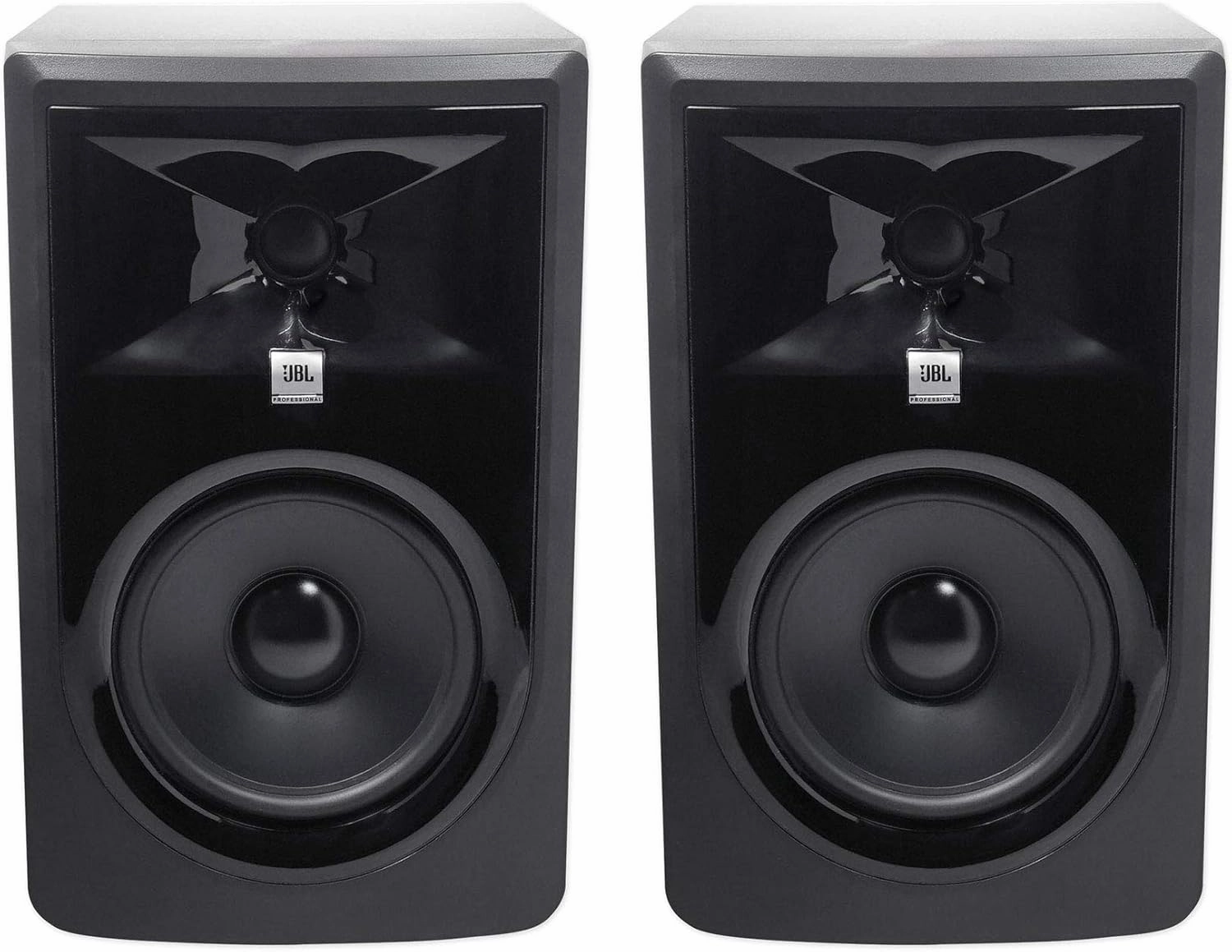

- Features: JBI 306P MkII 6" 2-Way Powered Studio Reference Monitor. Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot. Next-generation JBI transducers for optimized transient response and improved linearity. Patented Slip Stream low-frequency port for superior bass performance at all playback levels. Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment. HF Trim switch adjusts high-frequency output to room acoustics or personal preferences. Flexible connectivity with balanced XLR and 1/4" TRS inputs, 4dBu / -10dBV input-sensitivity switch and adjustable volume control. Engineered to JBI Linear Spatial Reference design criteria for outstanding accuracy in any working space. Strenuous JBI 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio. Specifications: LF Driver Size: 6.5" inches. HF Driver Size: 1" inch. HF Driver Type: Soft Dome. Crossover: 1425 Hz 4th Order Acoustic Linkwitz-Riley. Input Sensitivity: 92 dB. Power Configuration: Bi-Amplified. HF Driver Power Amp: 56 Watts, Class-D. LF Driver Power Amp: 56 Watts, Class-D. Frequency Response (3DB): 47 Hz 20 kHz. Frequency Range (-10DB): 39 Hz 24 kHz. Low Frequency Extension (-10 dB): 39 Hz
- Maximum Continuous SPL: 92 dB. Maximum Peak SPL: 110 dB. Maximum Peak Input Level (-10DBV / 4DBU): 6DBV / 20.3DBU. System Distortion Criteria: <10% THD At Maximum Output With Full Compressor / Limiter Engagement. Electrical Distortion Criteria: 0.2% THD @ 1KHZ / 2.83vrms Output; <1% THD @ 1KHZ, Full Rated Output. Signal To Noise Ratio: 75 dBA (A-Weighted), 70 dBR (Unweighted), Relative To 2.83VRMS Output. Coverage (Horizontal x Vertical): 120 X 90
- Analog Input Types: 1 x XLR Female, 1 x TRS Female, Balanced. HF Trim Control: -2DB, 0DB, 2DB. Boundary EQ: LF Shelf @ 50 Hz: -3dB, -1.5dB, 0dB. AC Input Voltage: 100 240VAC (10%), 50 / 60 Hz. Enclosure Type: Ported. Enclosure Construction: 15mm MDF. Enclosure Finish : Matte Black PVC. Baffle Construction: Injection-Molded Structural ABS. Cabinet Dimensions (H x W x D): 14.2" x 8.8" x 11.1" inches. Display Carton (H x W x D): 16.1" x 11.2" x 12.9" inches
Shipping Carton (H x W x D): 16.5 x 11.5 x 13.3 inches. Net Weight: 13.42 Lbs. Shipping Gross Weight: 15.95 Lbs. Powered 6 Two-Way Studio Monitor The next-generation JBI 306P MkII powered studio monitor makes legendary JBI performance available to every studio. With the revolutionary JBI Image Control Waveguide and refined transducers, JBI 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBI 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBI 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
