- Isolated Boost Power Supply: The device features an isolated boost power supply that ensures signal purity and a wide dynamic range. With the isolated power supply, there is no concern about ground interference, even in car use. The silent circuit ensures there are no thumping noises during power on off, powered by 5V.
- Signal Processing: The signal processing circuit uses the TI NE5532 operational amplifier, ensuring that your turntable's sound levels are boosted to speaker or stereo line , providing better volume and higher sound quality with HIFI and low noise.
- 3 Frequency Control: By enabling left right channel balance adjustment, volume control, and 3 band equalization, you can effortlessly achieve the balance. Customizable sound levels are suitable for all types of music, including rock, jazz, and more.
- Aluminum Alloy Material: The 3 band equalizer is made from aluminum alloy, rustproof, sturdy, compact, and long lasting, which offers high strength and stable performance.
- 3 Band Equalizer: The 3 band equalizer makes this device a 2 in 1 product (phono preamp and equalizer). The simple interface allows you to easily adjust left right channel balance, volume control, and high, mid, low equalization, enhancing your listening experience and providing exceptional sound quality with personalized sound characteristics.
1. 3 Band Equalizer: The 3 band equalizer makes this device a 2 in 1 product (phono preamp and equalizer). The simple interface allows you to easily adjust left right channel balance, volume control, and high, mid, low equalization, enhancing your listening experience and providing exceptional sound quality with personalized sound characteristics.
2. 3 Frequency Control: By enabling left right channel balance adjustment, volume control, and 3 band equalization, you can effortlessly achieve the balance. Customizable sound levels are suitable for all types of music, including rock, jazz, and more.
3. Signal Processing: The signal processing circuit uses the TI NE5532 operational amplifier, ensuring that your turntable's sound levels are boosted to speaker or stereo line , providing better volume and higher sound quality with HIFI and low noise.
4. Isolated Boost Power Supply: The device features an isolated boost power supply that ensures signal purity and a wide dynamic range. With the isolated power supply, there is no concern about ground interference, even in car use. The silent circuit ensures there are no thumping noises during power on off, powered by 5V.
5. Aluminum Alloy Material: The 3 band equalizer is made from aluminum alloy, rustproof, sturdy, compact, and long lasting, which offers high strength and stable performance.
Specification:
Item Type: Phono Preamp
Material: Aluminum Alloy
Power Supply: 5V
Power Consumption: 0.5W
Input Output Interface: Turntable Interface
Frequency Response: 20Hz-20kHz
Gain: 12db
Equalization Range: 15db
Input Impedance: 50K
Output Impedance: 600

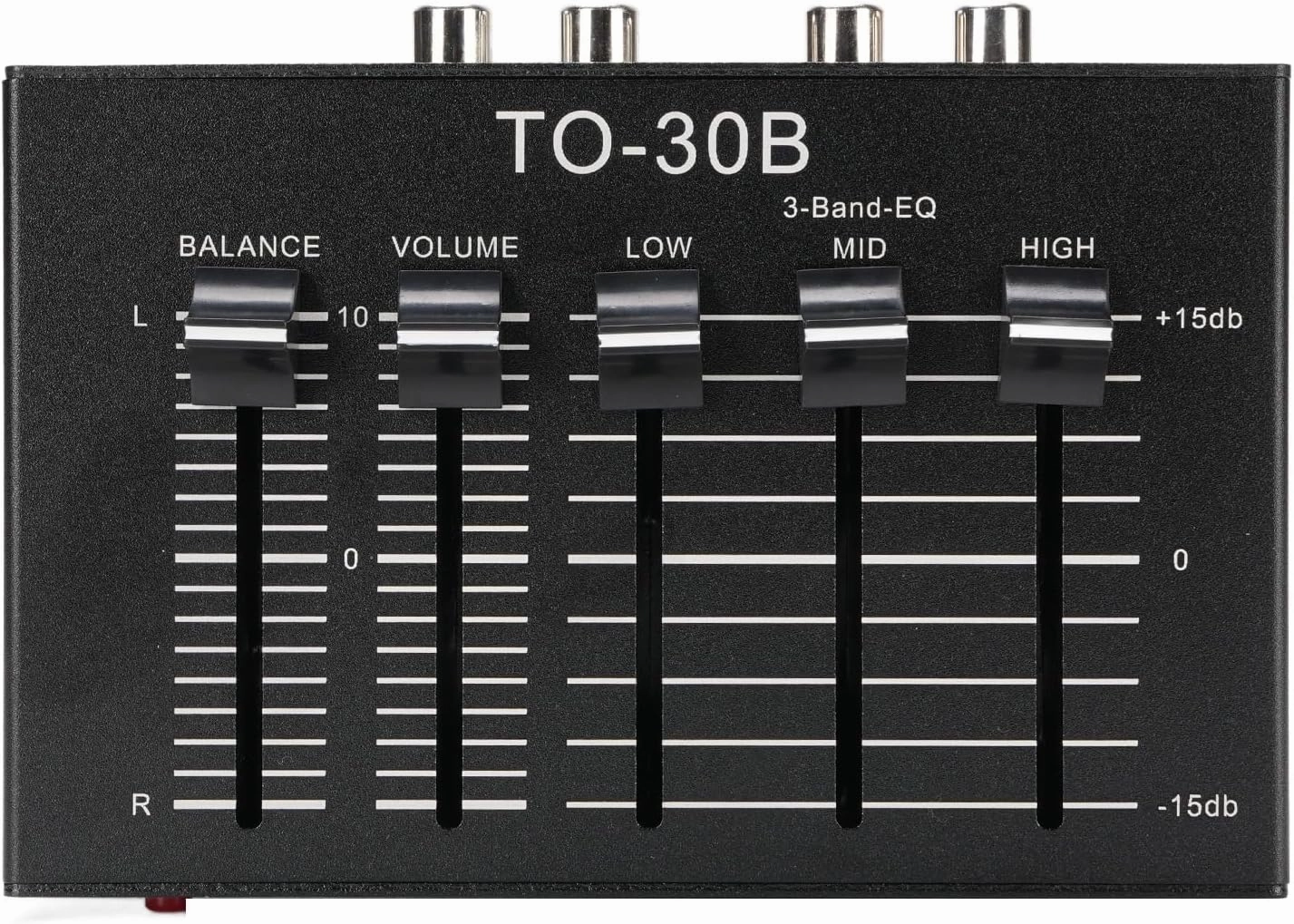

Knob and Interface Functions:
BALANCE: Adjust Left and Right Channel Volume Balance
VOLUME: Adjust Volume
LOW, MID, HIGH: Adjust Low, Mid, High Respectively
IN: Stereo Sound Input
OUT: Stereo Sound Output
5V: Power Interface, Compatible with Phone Charger, Computer USB Port, Car Charger, Power Bank, etc.
How to Use:
Simply take out the product.
packing list:
1 x Phono Preamp
1 x USB Cable
