- Multiple audio inputs for different requirements: support Bluetooth 5.0 / USB(U-disk) / Stereo RCA connections, perfectly match with phonoes, TV, tablet, projectors, computers etc., support U-disk to play APE/ FLAC /WAV/ WMA lossless formats besides MP3; greatly improve the sound quality for your amplifier or active speaker.

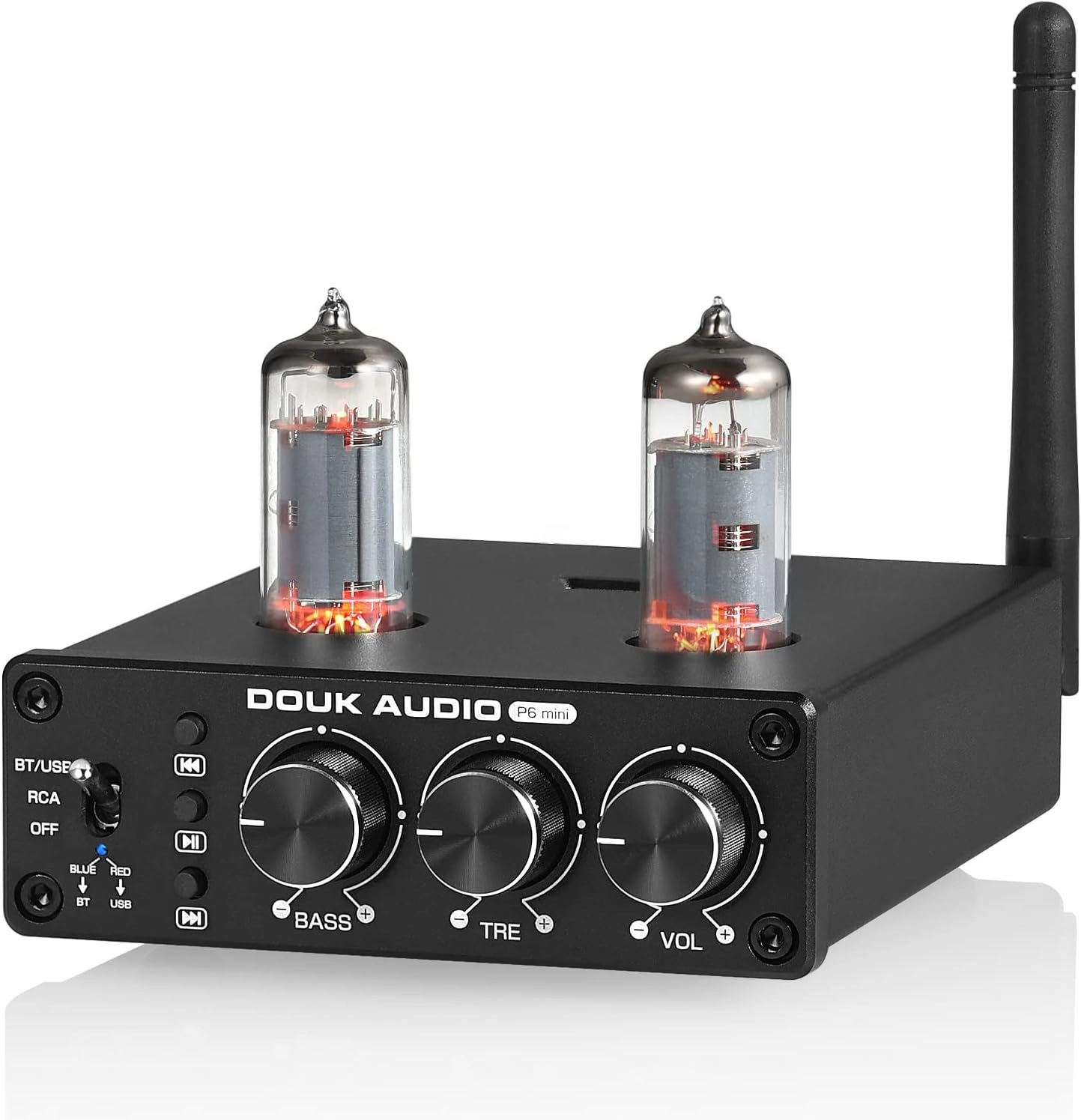

- HIFI warm sound and replaceable tube design: default 6A2 tube to filter out the digital feelings and soften the sound to be warmer and sweeter, full and mellow with large dynamic; pluggable tube design, can be upgraded to 6*1N / JAN5725W / 6AK5 / EF95 for tube shaping and rolling and enjoy different sound styles.
- Separate tone control and input switch: besides main volume control knob, also with independent treble and bass knob to present amazing music with rousing highs and deep lows; with input selector and LED indicator, easy to switch input channel and show its working state, no need to plug cables again and again.
- Compact size and attractive appearance: CNC machined black aluminum alloy chassis, sturdy and durable; decorated with warm orange light from vintage tube looks great, provide different acoustic enjoyment even in limited space, very suitable for the audiophiles who pursue wonderful auditory and visual enjoyment.
Warm Tips
U-disk input is prior to Bluetooth, Bluetooth will auto disconnect when U-disk is inserted.
Parameters
Audio input: Bluetooth 5.0/USB(U-disk)/Stereo RCA
Audio output: Stereo RCA
Maximum capacity U-disk supported: 64G
Highest sampling rate U-disk supported: 24Bit/192K (FAT32)
Formats U-disk supported: MP3/APE/ FLAC /WAV/ WMA
Treble / bass range: 6dB
Frequency response: 20Hz-20kHz(1dB)
Distortion: 0.03%
RCA input sensitivity: 0dBFS/1V
SNR: 100dB
Working voltage: DC 12V
Dimensions(W*D*H): 97*118*33mm/3.82*4.65*1.30in
Package Dimensions(W*D*H): 250*215*65mm/9.84*8.46*2.56in
Net Weight: 337g/0.74lb
Package Weight: 700g/1.54lb
Packing List
1*P6-MINI Preamp
2*6A2 Tube
1*DC12V Power Adapter
1*Bluetooth Antenna
1*User Manual
