- Excellent signal loop and sound qualityBest partner for Musician PegasusII R2R DAC. The original design circuit is used, and the signal passage is fully DC, the DC output voltage is also very low. The signal does not distortion, high efficiency, low noise, so that the signal circuit reaches more ideal state, and listening is more clearly balanced than traditional design.
- Volume Control Method Use relays to control pure R2R resistive network architecture. This structural output impedance is constant and the sound quality under any volume does not degrade. Accurate control of volume adjustment, balancing, and voices are not lost. More real-time display and remote control control.
- Materials and accessoriesMaterials are made of metal aluminum and are made with high precision and are plenty of luxury. Aluminum CNC Remote Containment: Use the Original Import ALPS button and Vishay infrared transmit tube. Sensitive, comfortable touch.
- Multiple Source Input InterfacesMonoceros has a total of XLR * 2, RCA * 1, and more sound source can also be processed. Monoceros has two sets of output XLR and RCA. After processing signals, it can choose to output to two different levels, and broaden the application range for greater extent.
- Volume protection, prevent accidental appearanceMusician Monoceros adds a trip algorithm in the relay digital control circuit, completely eliminating problems in the traditional relay control scheme.

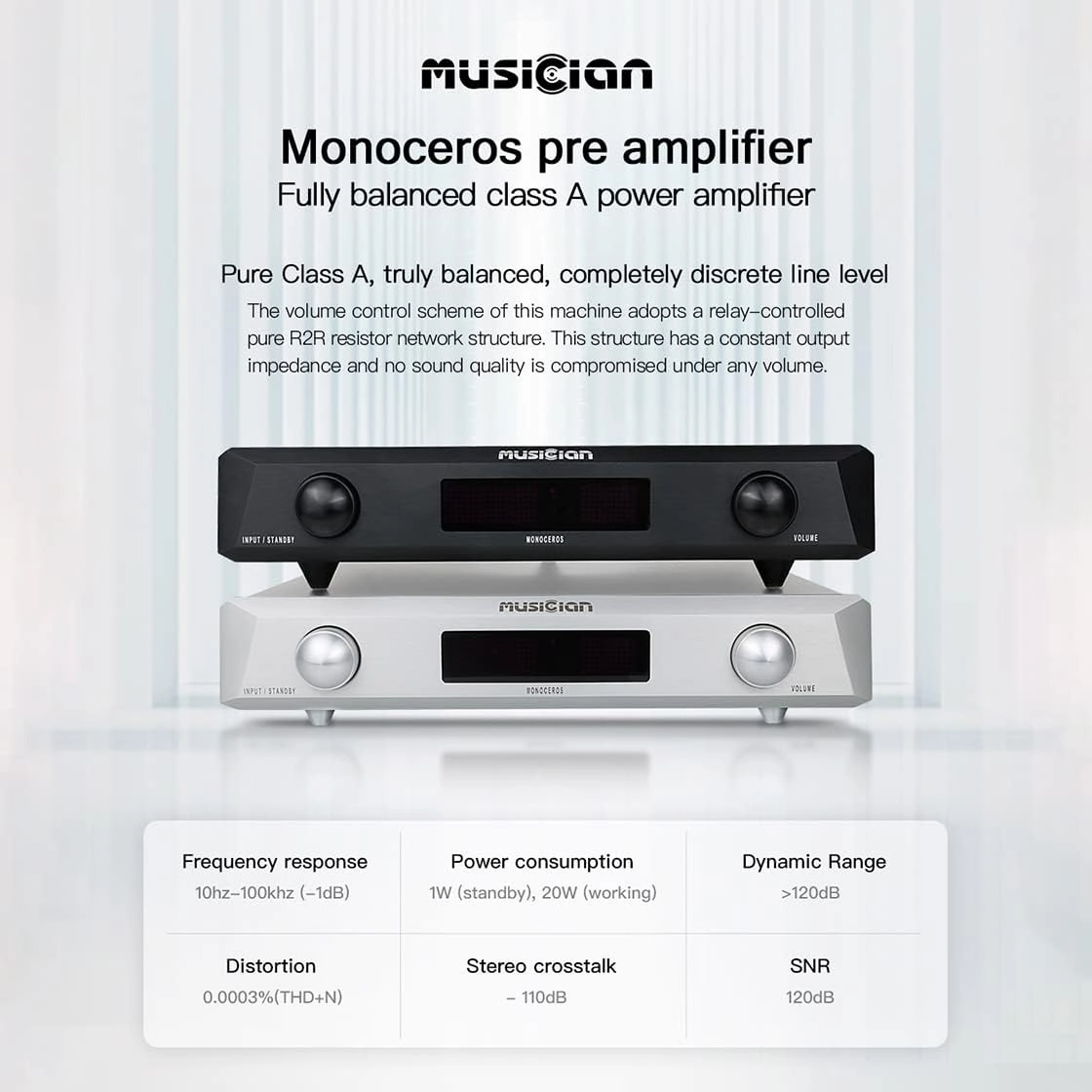

Musician Monoceros Pre Amplifier Class A Amplifier Balanced Power Amps XLR/RCA 20W Preamp Pre-amp for DAC with Remote Control
Parameters:
Brand: Musician
Model: monoceros
Color: Black/Silver
Size: 320 * 330 * 60mm
Weight: 7kg
AC power supply: 110 / 240V AC, 50Hz / 60Hz
Machine Consumption: 1W (Standby Time) 20W (during work)
Frequency response: 10Hz to 100 kHz (-1 dB)
Distortion: 0.0003% (THD N)
Sign ratio: 120 dB
Dynamic range:> 120 dB
Stereo sketch: -100 dB
Input impedance: 20k
Output impedance: 200

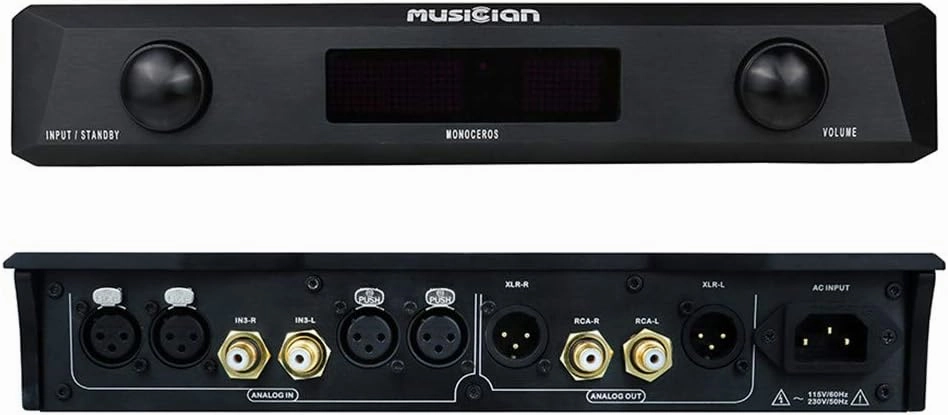

Input port: XLR * 2, RCA * 1
Output port: XLR * 1, RCA * 1
Note: The package does not include AC power cables, which need to be purchased by yourself.
