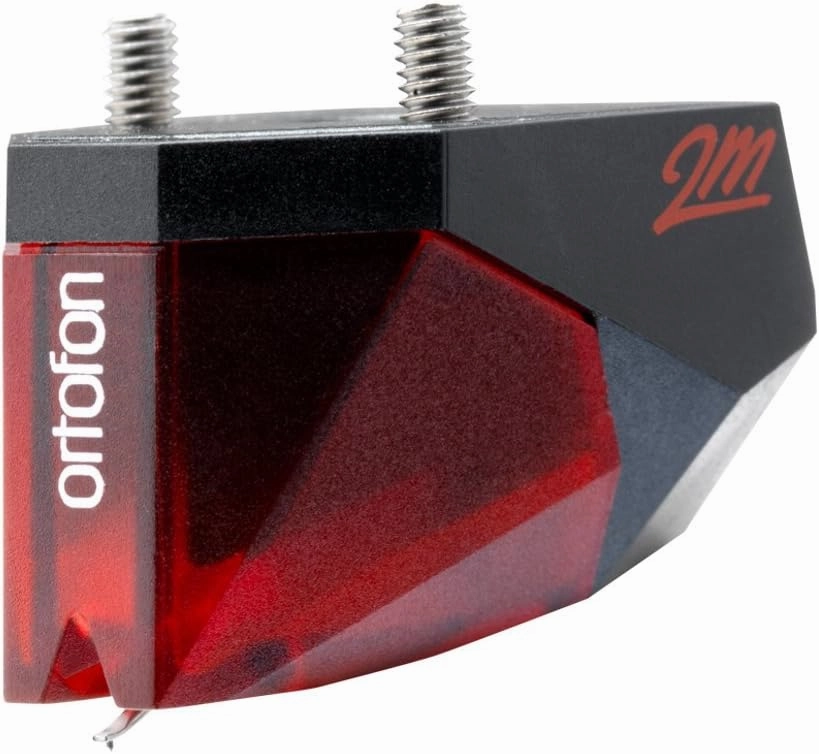

Ortofon 2M Red Verso MKII

Technical data

Output voltage at 1000Hz, 5cm/sec. - 5.5mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-22,000 Hz.
Frequency response - 20-20,000 Hz 3 / - 1 dB.
Tracking ability at 315Hz at recommended tracking force - 70 m.
Compliance, dynamic, lateral - 20 m/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 m
Tracking force range - 1.5-2 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20
Internal impedance, DC resistance - 1.3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm.
Recommended load capacitance - 150-300 pF.
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7g 2M PnP MkII cartridge with integrated headshell weight - 20g.
2M PnP MkII cartridge with integrated headshell length - 52 mm.
Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver.
- 2 m bronze and 2 m black.
- 2M Mono and 2M 78

• Is Discontinued By Manufacturer : No
• Product Dimensions : 4.72 x 3.54 x 1.18 inches; 3.53 ounces
• Date First Available : September 25, 2014
• Manufacturer : ORTOFON
