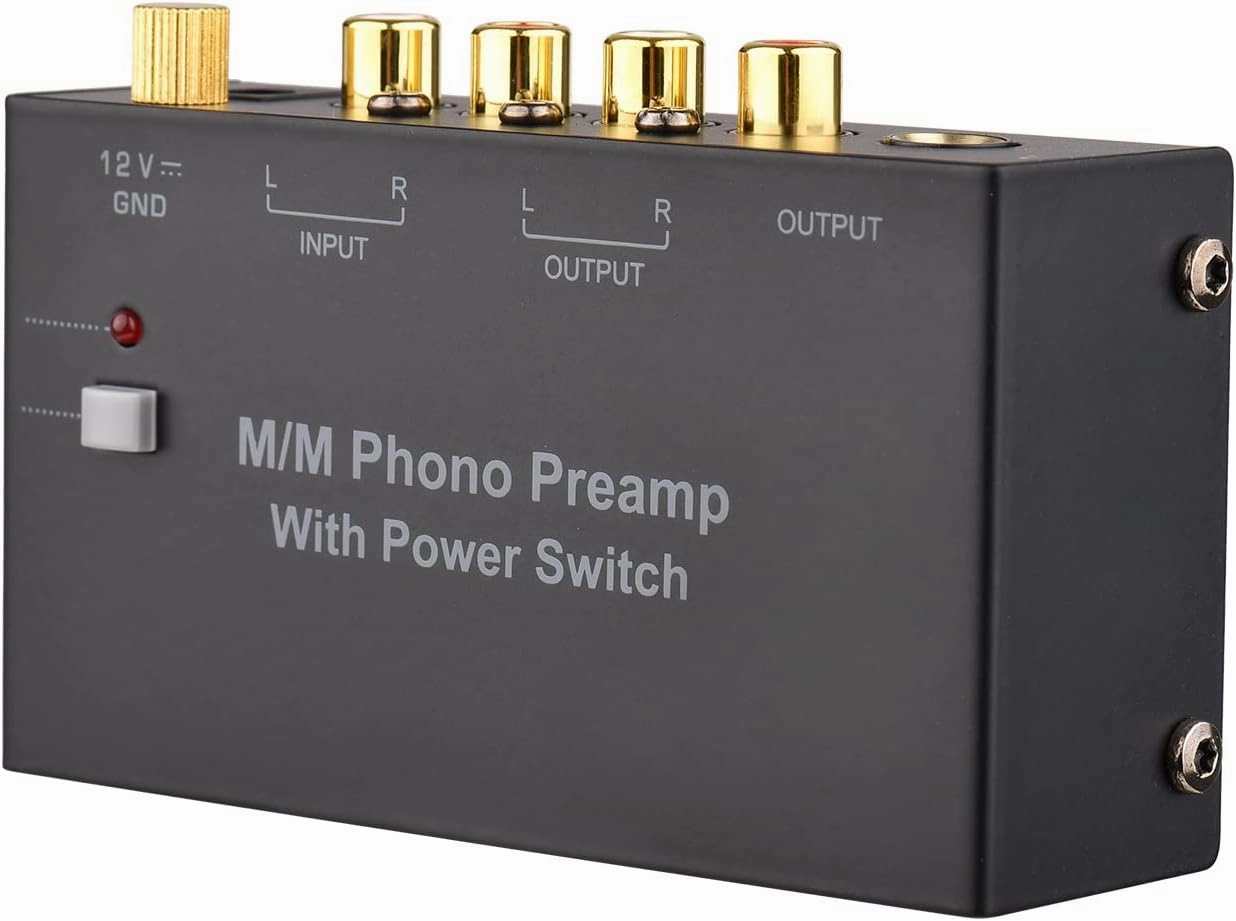

- Professional for converting the phono signal to a line level signal.
- With two RCA(L & R) inputs, two RCA(L & R) outputs and one 1/4" TRS output.
- Compact size phono preamp with metal shell, portable and durable.
- Ultra low-noise audio performance, offers excellent sound quality.
- Designed with a push button switch and power indicator.
Specifications:
Plug: EU Plug / US Plug (Optional)
Material: Metal
Power Supply: DC 12V, 150mA
Power Adapter: Input--110-240V, 50/60Hz, output--12V, 1A
Item Size: 103 * 64 * 32mm / 4.06 * 2.60 * 1.26in
Item Weight: 174g / 6.15oz
Package Weight: 317g / 11.18oz
Package Size: 14 * 9.8 * 8cm / 5.51 * 3.86 * 3.15in
Input:
Type: RCA connector
Impedance: Approx. 47kW
Max. Input Level: -23.5dBV@1kHz
Output:
Type: RCA and 1/4" TRS, stereo connector
Impedance: Approx. 50W
Max. Output Level: 11.5dBV@1kHz
System:
Frequency Response: RIAA
THD: 0.06% typ.@-40dBu/1kHz
Gain: 35dB
Signal-to-noise Ratio: 68dBu@0dBu, A-weighted
Input Sensitivity: 5.3mV@1kHz
Packing List:
1 * Phono Preamp
1 * Power Adapter
