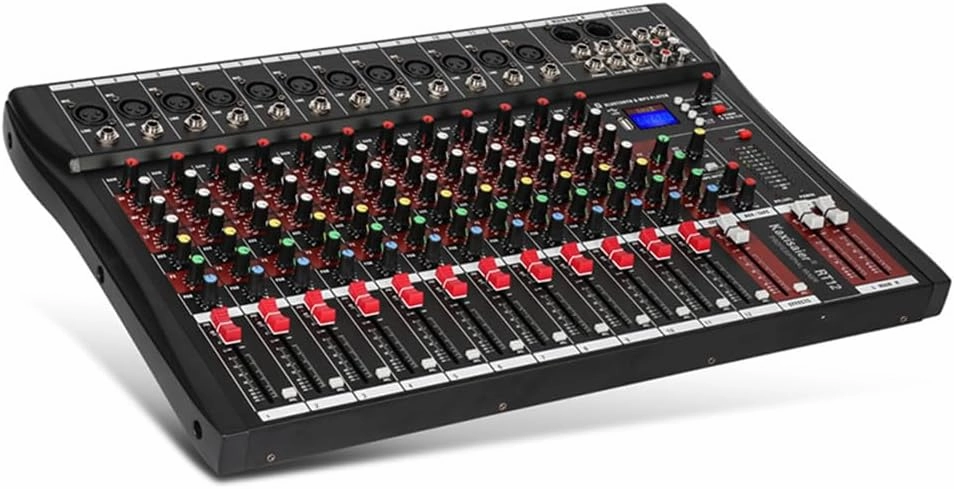

- 12 channel mixer can easily connect to Bluetooth devices, USB drives, or flash readers for seamless mixing and recording of audio
- Audio mixer features electronically balanced XLR outputs with 26dBu drive capability and a pre-amp with a maximum input capability of 34dBu, suitable for both microphone and line levels
- DJ mixer board has an integrated MP3 player with user-friendly controls for play/pause, track skipping, and mode switching, equipped with metal jacks, gold-plated XLR connectors, and sealed pots and switches
- Digital mixer for PC features easy-to-push, smooth faders for precise audio control, and includes a clear LCD display for easy monitoring of settings and levels
- DJ mixer equipment provides 48V phantom power for condenser microphones, and allows for 2-track monitoring and replay to left/right channels for effective audio management
- Each channel of audio mixer includes a responsive 3-band equalizer for fine-tuning audio tones, and dedicated outputs for headphones and local monitoring, enhancing flexibility during use
- Sound board incorporates an ultra-low noise mix head amp design, ensuring clean and clear sound output, ideal for professional DJs, stage performances, weddings, KTV, gigs, campus events, and home entertainment
SPECIFICATION
Model: CT120
Material: metal casing
Channel: 12
Dimensions: 20.08x13.39x1.57 in
THD N: <0.01% (Channel Input to Mix Output)
Crosstalk at 1kHz:> 85dB (Fader/Mute Shut Off);> 82dB (Inter Channel)
Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu
2-track Return: RCA, Unbalanced, 4K ohm, -2dBu
2-track Send: RCA, Unbalanced, <75 ohm, -2dBu
L/R Output: XLR Unbalanced, Pin 2 Hot, <75 ohm, 4dBu, Max. 22dBu
FX/AUX Output: TRS Unbalanced, Tip Hot, <75 ohm, -2dBu, Max. 18dBu
Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended
PACKAGE
1 x 12-Channel Audio Mixer
1 x Power Adapter
1 x Instructions
