- MM Phono Preamplifier: The PH-1 is designed specifically for MM cartridges. By eliminating the MC amplification circuit, it boosts circuit performance by 50%! This makes it a popular choice among users and enhances convenience
- Low Noise Operation: The PH-1 boasts an advanced power processing circuit that provides isolated dual power supply from a DC input. With a gain of 46dB, it ensures a robust output signal of around 1000mV, preventing distortion from large input signal
- Great Audio Quality: Equipped with a high-quality 5V DC power supply, the PH-1 delivers stable performance. Key performance metrics include -81dB THD N, -77dB Channel Separation and 84dB Signal-to-Noise Ratio, offering an exceptional value for money
- 6.35mm Headphone Amplifier: The PH-1 features an integrated independent 6.35mm jack headphone amplifier. This design is perfect for situations where using speakers is impractical and can also serve as a front-stage volume control for active speakers

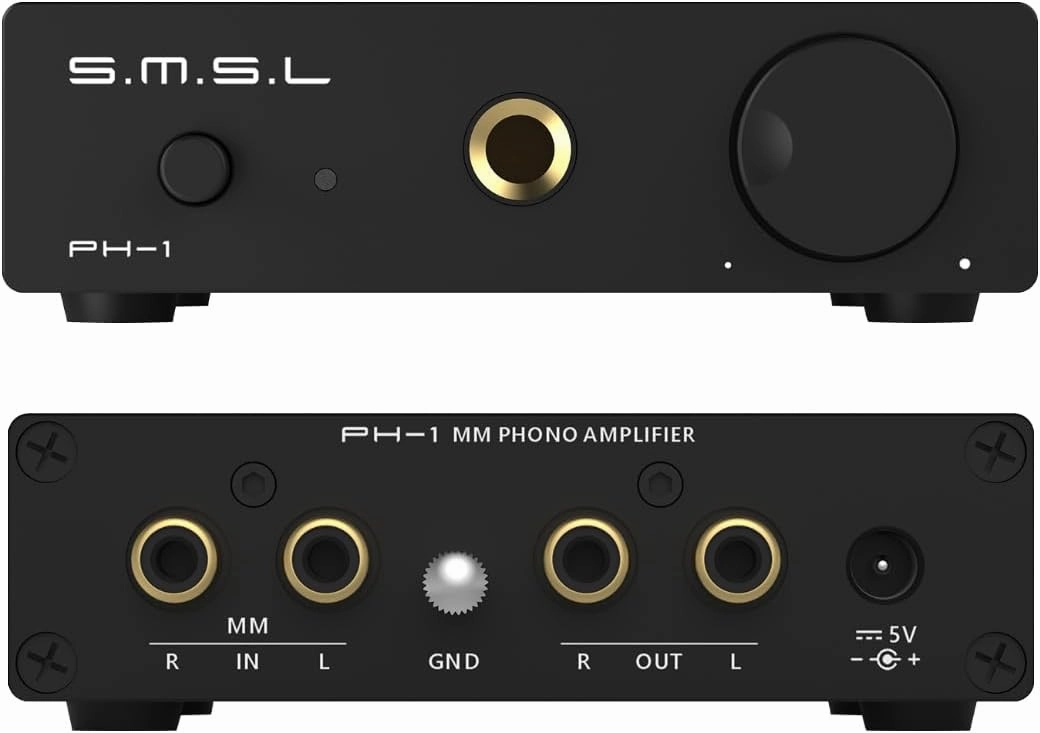

- User Friendly Design: It features an easy to use one-touch power button, headphone volume control knob. In addition, the ground connection ensures a secure connection. The design is both visually appealing and ergonomically well-crafted
- Mini Phono Preamp: Despite PH-1 has 6 interfaces ( Power cord, RCA L/R input, RCA/6.35mm headphone output and ground interface), the PH-1 is compact at just 96 x 94 x 30 mm. Its palm-sized form factor and well-spaced interfaces make wiring a breeze
Precision Audio Amplification
With a 46dB gain and -81dB THD N, the PH-1 accurately amplifies the subtle vibrations from your MM cartridge, ensuring every note from your vinyl records is reproduced with clarity and minimal distortion. Perfect for vintage turntables or modern setups seeking warm, detailed sound.
Noiseless Operation The built-in pop control circuit eliminates the annoying ""pop"" sounds during power on/off, while the low-noise power supply (DC 5V, 500mA) reduces background noise, creating a silent listening environment that lets your music shine.
Plug-and-Play Simplicity
Simply connect your turntables MM cartridge to the RCA inputs, link the PH-1 to your amplifier via RCA outputs, and power it via the USB port (cable included). No complex setupjust pure analog sound in seconds.
Technical Specifications
Gain: 46dB
THD N: 0.008% (-81dB)
Frequency Response: 20Hz20kHz
Signal-to-Noise Ratio: 84dB
Power Supply: DC 5V/500mA (USB-powered)
Dimensions: 94x30x96mm (WxHxD)
Weight: 0.205kg
Ideal For:
Vinyl collectors and turntable owners using MM cartridges.
DJs and hobbyists needing a portable, high-quality phono amplifier.
Package Includes:
1x SMSL PH-1 MM Phono amplifier
1x USB Power Cable
1x User Manual
