- Supports USB inputAchieve reference-level digital interface functions with the support of clock input.

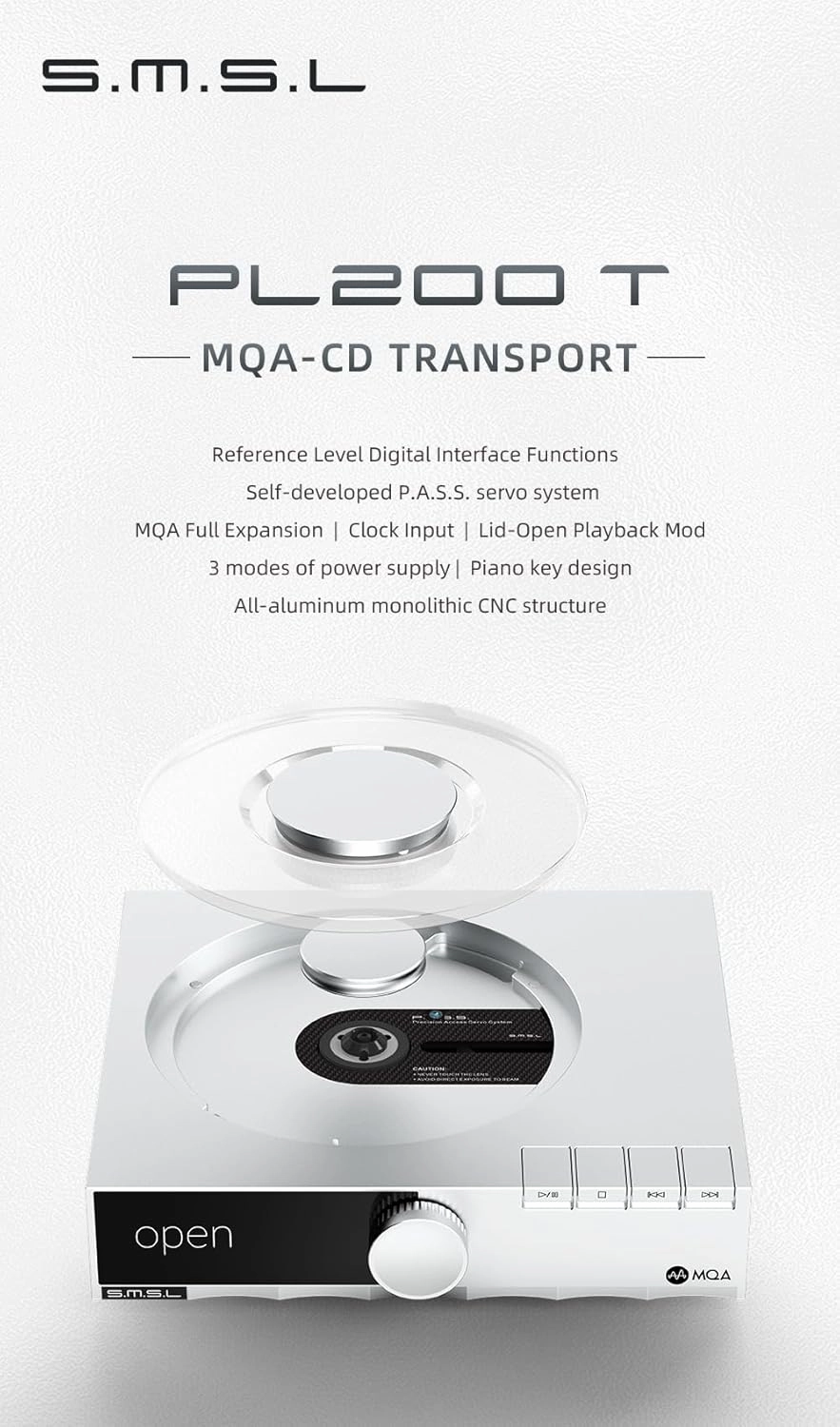

- Self-developed precision Access servo systemNative support for MQA-CD. The servo system developed by SMSL over two years features fast response and precise reading capabilities. Combined with their self-developed vibration damper, it offers excellent mechanical anti-vibration performance!
- Clock input Supports 44.1kHz word clock and 10MHz standard or atomic clock! Input impedance matching of 50 or 75 is possible!
- multi-interface outputWith optical, coaxial, I2S and AES/EBU outputs.
- Transparent Acrylic CD LidProvides dust protection while allowing you to see the CD disk in action and is not prone to breakage! Tempered glass fully laminated lPS display and newly developed Ul.
Specifications
InputUSB Audio /CD Player
OutputOptical /Coaxial /AES/EBU/I2S
USB transmissionUSB 2.0 Asynchronization
USB compatibilityWindows7/8/8.1/10/11(Need Driver). Android system, i0S,Linux(Driveless).
Output maximum sampling rate
I2S outputPCM44.1~768kHzDSD2.8224~22.5792MHz
Optical/Coaxial/AES/EBUPCM24bit/192kHzMQA8-fold expansion up to 384kHz(Automatically converts to 192kHz due to SPDlF limitation)
Clock input
Frequency44.1kHz or 10MHZ
Impedance50 ohms or 75 ohms
Waveformsquare wave or sine wave
LevelSquare wave TTL levesine wave>1Vrms
Power consumption15W
Standby power<0.5W
Size200x42x175mm(WxHxD)
Weight1.62kg/3.57lbs
