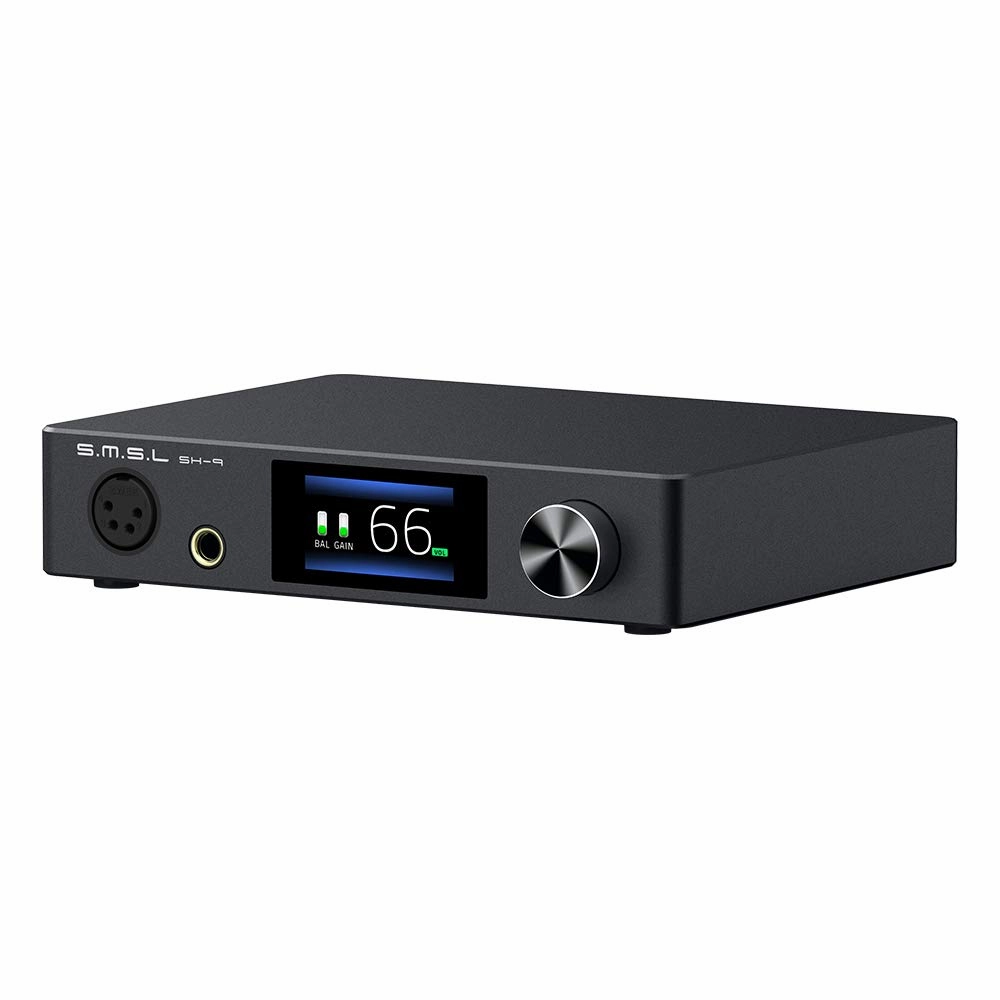

- THXAAA-888 Headphone Amplfier with THX AAA Technology
- 6 Watts into 16 Ohm,3 Watts into 32 Ohm Headphones with lowest THD N
- 0.1Hz to 500kHz(-3dB) Frequency Response
- Fully Protection with DC, Over-Voltage, Over-Current, Short-Circuit and Thermal Protection on Headphone Amplifier
- Balanced Stereo Headphone Output; Balanced Stereo Line Input
Note:
Please press B key firstly when you using remote control, thanks
Features
SNR>137dB
THD<0.00006%
Ultra-Compact Design, Perfect for Desktop Systems
High Precision Resistors for Temperature Stability
Pop-less Design with High-Quality Relays
High precision and low noise 256 level relay volume control; In actual use, in order to make the volume more linear, the extra levels are shielded.
2 Positions Switchable Gain Control
High-Eficiency Ultra-Low-Noise Power Supply
1.9 inch LCD display.
Specifications
Audio Section:
Inputs:Balanced x1, Unbalanced x1
Outputs:Balanced x1, Unbalanced x1
Output Power:6W x 2(16)
3W x 2(32)
440mW x 2 (300)
220mW x 2 (600)
SNR:137dB, A-Weighted
Output Noise:1.9uV, A-Weighted
THD N:-123dB, 0.00006% (A-Weighted)
THD N:-117dB, 0.00013% (20-20kHz, 32,-3dB)
THD:-125dB, 0.00006%(1kHz, 16, -3dB)
Input Impedance:47k
Output Impedance:Near 0
Frequency Response:0.1Hz-500kHz(-3dB)
Gain:Low( 0dB), High( 10dB)
General Section:
Power supply voltage/frequency: AC100-240V, 50-60 Hz
Power consumption(EN60065):24W
Power consumption in standby mode:<0.1W
Size:187.5x154x40(mm)
Packing size: 282x232x79(mm)
Weight:790g
- Package Dimensions : 11.2 x 9.1 x 3.1 inches; 2.78 Pounds
- Date First Available : November 6, 2020
- Manufacturer : S.M.S.L
