Home Amplifiers Phono Preamplifiers

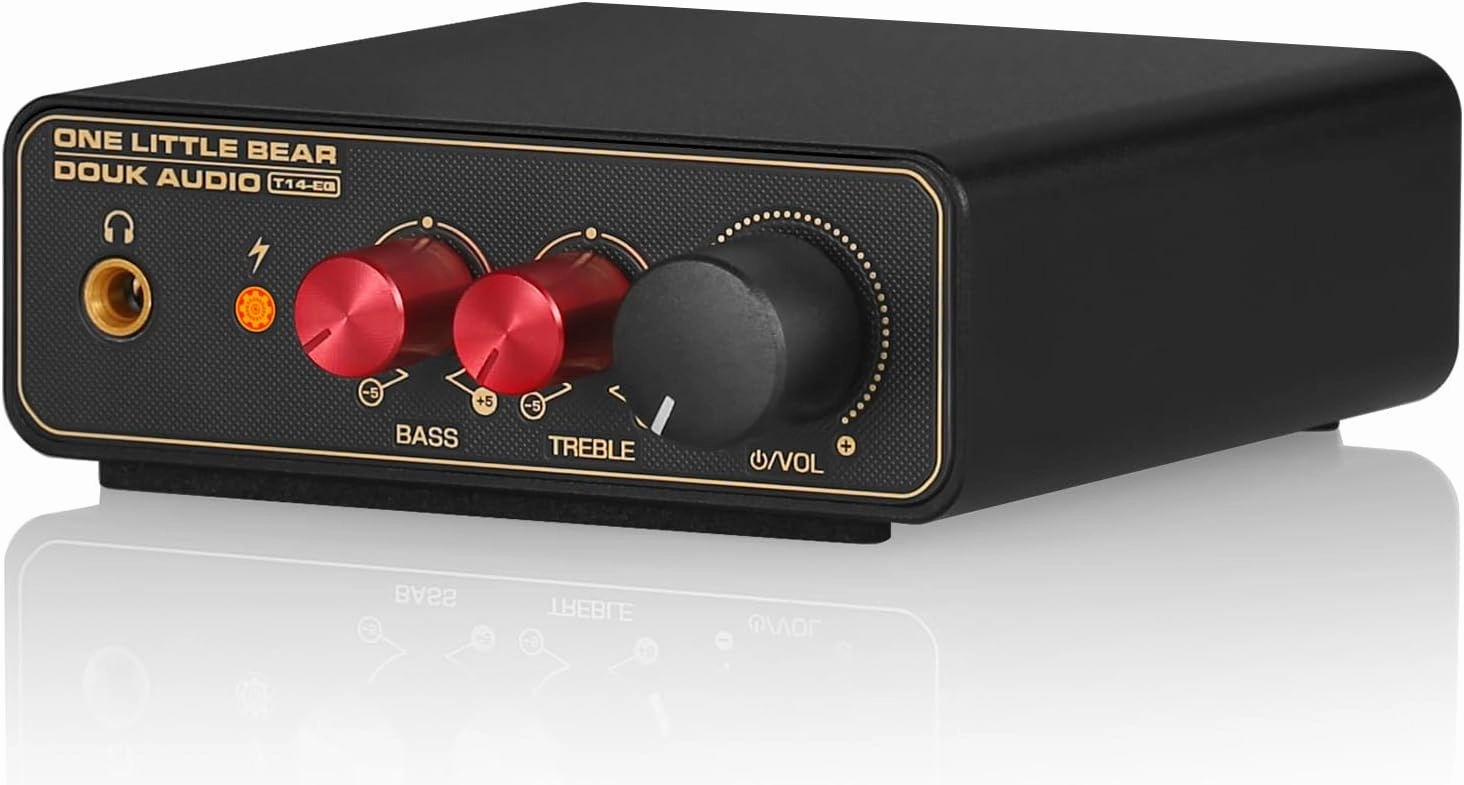

T14 MM MC cart Turntable Phono RIAA Preamp preamplifier BASS Treble Adjustment   Headphone Amplifier phono preamp,turntable amplifier,record player preamp,

T14 MM MC cart Turntable Phono RIAA Preamp preamplifier BASS Treble Adjustment Headphone Amplifier

$ 50.00

$ 200.00

Unavailable
T14 MM MC cart Turntable Phono RIAA Preamp preamplifier BASS Treble Adjustment   Headphone Amplifier phono preamp,turntable amplifier,record player preamp,

T14 MM MC cart Turntable Phono RIAA Preamp preamplifier BASS Treble Adjustment Headphone Amplifier

$ 50.00

$ 200.00

Size:
  • One Size
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

  • PHONO PREAMP HEADPHONE AMPLIFIER: in (1) component
  • DUAL FUNCTION VOLUME KNOB: works for both phono headphone outputs
  • High quality components Full metal casing
  • Support for Moving Magnet (MM) and Moving Coil(MC) cartridges both.
  • With Treble and Bass tone adjustment function


Description
Warm Tips
1. 3.5mm headphone output with priority, please make sure the headphone cable has been pulled out if want to use stereo RCA output.
2. Without a DC5V power adapter, please prepare it by yourself.

Features
MM/MC phono preamp: converts phono signal to line level signal, low-noise integrated circuits and high-quality components are designed to ensure clear sound; with a MM/MC switch on the bottom, easy to select to match different kinds of turntables.
LINE and 3.5mm headphone outputs: with stereo RCA output to connect amplifiers or active speakers, greatly improve their sound quality; also add a 3.5mm headphone jack to drive all 16-200 headphones, convenient to enjoy music from record players alone or at night.
HIFI sound and tone control: with independent treble and bass control within -5dB to 5dB range, easy to adjust different sound styles to personal perference.With built-in power isolation circuit, no common ground noise will be generated even sharing the same power with audio players.
Mini size and easy to use: compact design, all-aluminum shell and gold-plated PCB and RCA terminals can maximally isolate external interference signals to ensure lossless transmission; USB 5V input voltage, also can be powered by computer or power bank, convenient to use anywhere in your house.

Parameters
Audio input: MM/MC phono
Audio output: Stereo RCA / 3.5mm Headphone Jack
Input level:
MM: 0.005V RMS
MC: 0.0005V RMS
Frequency response: conforms to RIAA characteristics(0.5dB)
Treble / bass range: 5dB
Headphone output power:

250mW @32
100mW @64
60mW @128
Headphone impedance range: 16-200
THD: 0.1%
Output level: 0.6V RMS
S/N ratio: 80dB(Phono)
Working voltage: DC 5V(0.6A)
Dimensions(W*D*H): 84*84*28mm / 3.31*3.31*1.10in
Package dimensions(W*D*H): 133*92*50mm / 5.24*3.62*1.97in
Net weight: 176g / 0.39lb
Package weight: 400g / 0.88lb

Packing List
1T14-EQ Preamp
1USB Cable(Type-C)
