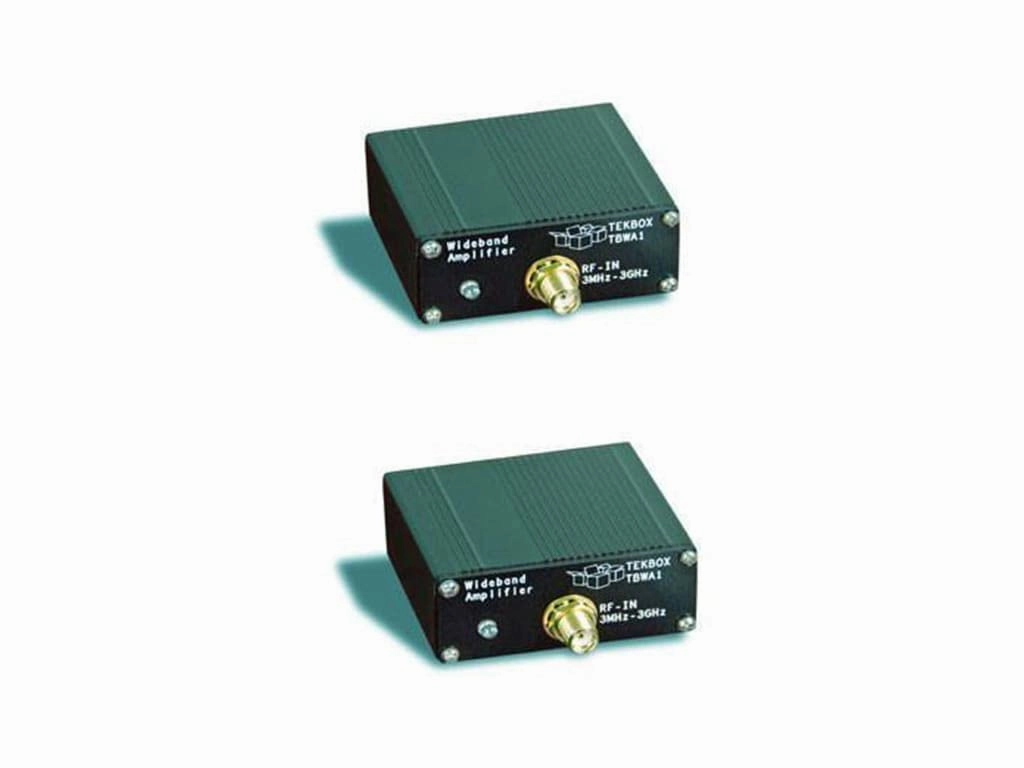

TekBox TBWA2/20dB/40dB Wideband Amplifier Set The TBSWA2/20dB and TBSWA2/40db wideband amplifiers are connected between EMC probe and Spectrum Analyzer to increase the dynamic range of the measurements. Applications General purpose gain block EMC probe amplifier TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz they are ideal to boost the signals picked up by our EMC near field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain. TBSWA2/20dB Gain: 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 2 GHz 3 GHz 4.5 GHz 6 GHz 14.8 dB 20.2 dB 20.2 dB 20 dB 19.8 dB 19 dB 17.6 dB 17.4 dB 15.4 dB TBSWA2/40db Gain: 1 MHz 10 MHz 100 MHz 500 MHz 1 GHz 2 GHz 3 GHz 4.5 GHz 6 GHz 30 dB 40.2 dB 40.2 dB 40 dB 39.5 dB 37.6 dB 36.4 dB 36.4 dB 34.7 dB Part Number Frequency range [MHz] Gain [dB] typ. N.F.

• Product Dimensions : 17 x 17 x 9 inches; 6.4 ounces
• Date First Available : April 9, 2025
• Manufacturer : TekBox Digital Solutions VN Co
• Country of Origin : Vietnam
