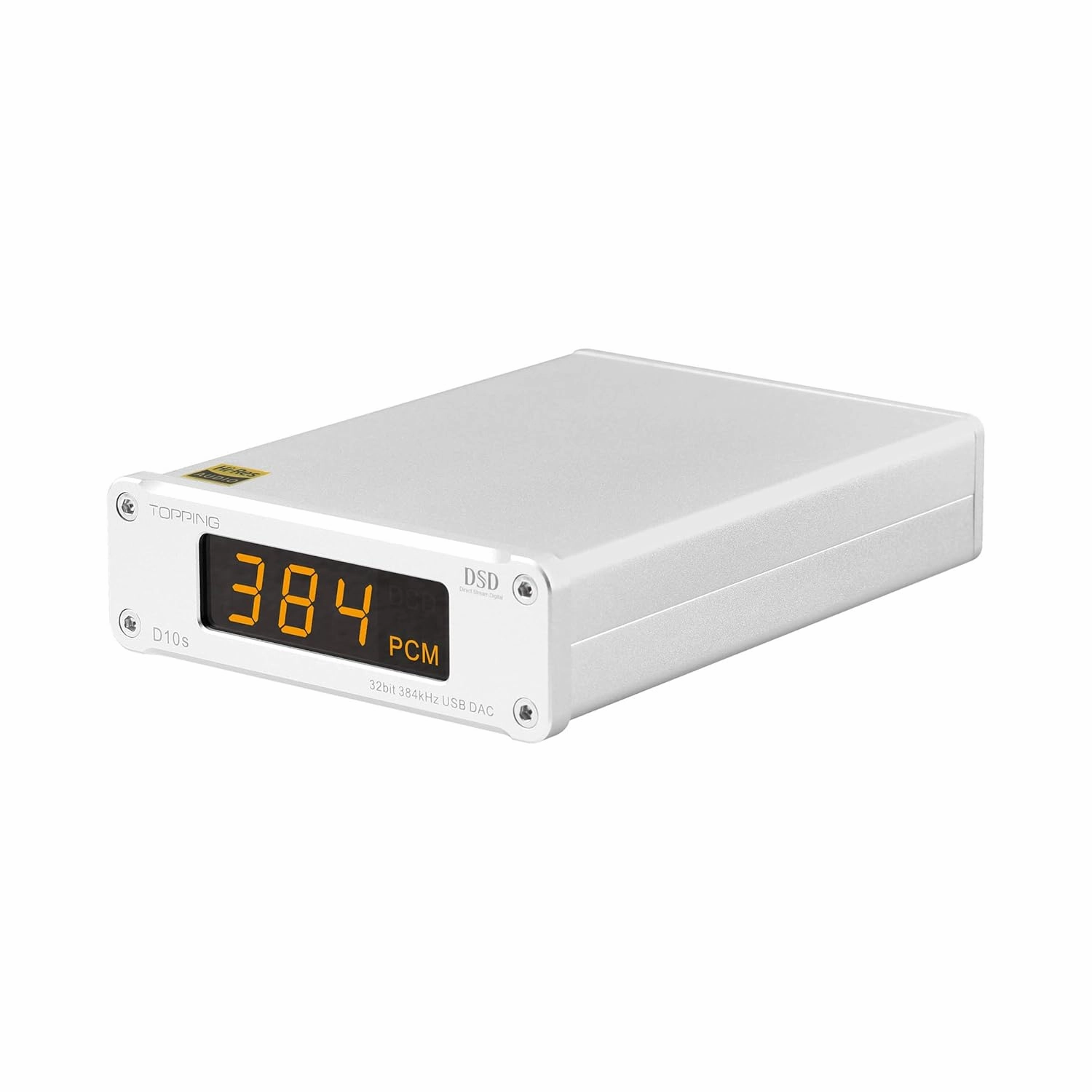

- D10s is compatible with 16-32bit/44.1-384kHz and DSD64-DSD256
- D10s uses XMOS XU208 for USB interface and uses customized driver which from Thesycon for better compatibility with high resolution audio file especially DSD native.
- Even some USB port support power after PC has shut down, D10s still will synchronously power on /off with PC.
- D10s can accurately indicate the audio format (PCM or DSD) and sampling rate of the playing music. Orange LED is soft and not dazzling even at night.
- D10s has OP amp socket, DIYer could change the OP amp to get different sound.
Connect to active speakers:
Connect D10s to your active speakers. D10s provides not only DSD and higher-specification PCM compatibility but also a better sound quality than your computer's built-in sound card or a regular DAC.
Connect to power/headphone amp
You can connect line out of D10s to the input of your ampifier/headphone amplifier, to make D10s to be one part of your HiFi system. D10s will greatly improve sound quality in the case of playing high resolution files.
SPEC
Measured: 10.3cmx 14.6cm x 3.7cm
Weight: 323g
Power input: DC5V / 0.5A(USB power supply )
Colour: Black/Silver
Input: USB
Output: COAX/OPT/RCA
Display: Customized digital tube
USB IN:
44.1kHz- 384kHz/16Bit-32Bit
DSD64-DSD256(Native)
DSD128(Dop)
OPT/COAX Out:
44.1kHz- 192kHz/16Bit- 24Bit
DSD64 (Dop)
D10s decoding specification(LineOut/USB In@96kHz)
THD N @1kHz A-wt: <0.0002%
SNR @1kHz A-wt: 120dB
Dynamic Range @1kHz A-wt: 120dB
Frequency Response:
20Hz-20kHz( 0.1dB), 20Hz-40kHz( 0.4dB)
Output Level: 2Vrms @0dBFS
Noise @A-wt: <2.5uVrms
Channel Crosstalk @1kHz: -135dB
Channel Balance: <0.02dB
Output Impedance:20
- Is Discontinued By Manufacturer : No
- Product Dimensions : 5.75 x 4.06 x 1.46 inches; 7.05 ounces
- Date First Available : December 18, 2016
- Manufacturer : TOPPING
