- The D70 Pro OCTO dac is equipped with 8 Cirrus Logic flagship chipsCS43198. The ability to restore music has reached a new level, with THD N <0.00007%, SNR 134dB, and perfect details.
- The full-color screen and three touch buttons of the D70 Pro OCTO introduce a refreshing UI experience. Whether you're toggling playback information, FFT, or VU, the vibrant colors pull you in, creating a customizable visual delight.
- D70 Pro OCTO DAC provides Bluetooth 5.1 connectivity, supports LDAC/aptX-Adaptive/ aptX HD/aptX/AAC/SBC audio encoding. Set your music indulge in a better sound experience without the clutter of cables.
- Using XMOS stable and reliable third-generation solution XU316, USB input supports PCM768kHz/32bit and DSD512 audio decoding, and is suitable for a variety of computer operating systems.

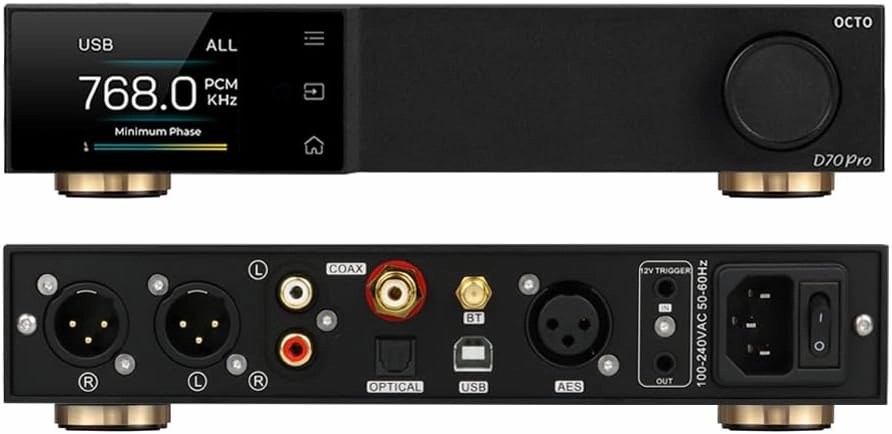

- Whether you need RCA single-ended output, XLR balanced output, or open two outputs, D70 Pro OCTO can meet your needs. The output mode can be switched at will to adapt to different equipment and performance requirements.
- If you have any questions during use, AOSHIDA will quickly guide you to solve them.

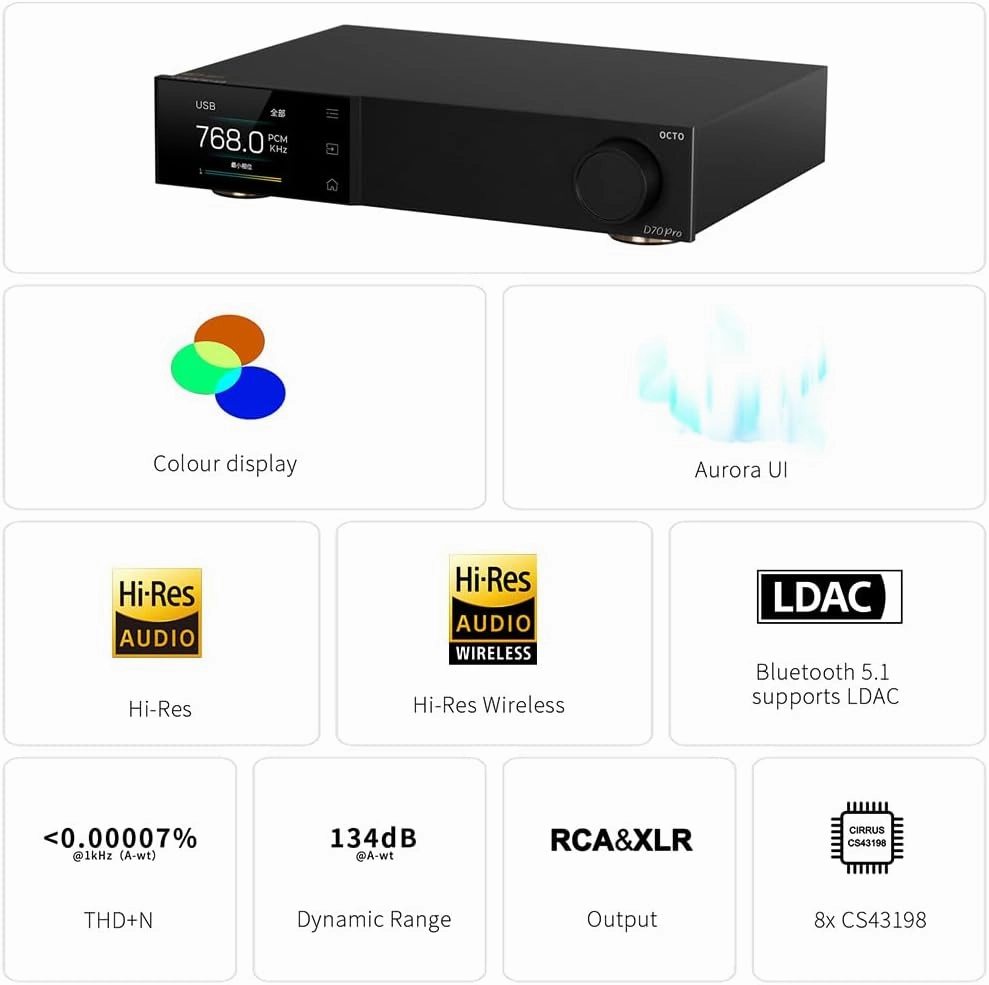

TOPPING D70 Pro OCTO 8* CS43198 Fully Balanced DAC
D70 Pro OCTO DAC parameters (Line Out/USB In@96kHz)
THD N (A-wt)
RCA: <0.00008% @1kHz
XLR: <0.00007% @1kHz
THD @90kBw (No-wt)
RCA: <0.0004 % @20-20kHz
XLR: <0.0002% @20-20kHz
SNR (A-wt)
RCA: 128dB @1kHz
XLR: 134dB @1kHz
Dynamic Range (A-wt)
RCA: 128dB @1kHz
XLR: 1347dB @1kHz
Frequency Response
RCA: 20Hz-20kHz (0.05dB), 20Hz-40kHz (0.2dB)
XLR: 20Hz-20kHz (0.05dB), 20Hz-40kHz (0.2dB)
Output Level
RCA: 2.1Vrms @0dBFS (4V Mode), 2.6Vrms @0dBFS (5V Mode)
XLR: 4.2Vrms @0dBFS (4V Mode), 5.2Vrms @0dBF S (5V Mode)
Noise (A-wt)
RCA: <1.0uVrms
XLR: <1.0uVrms
Channel Crosstalk
RCA: - 124dB @ 1kHz
XLR: -149dB @1kHz
Channel Balance
RCA: 0.3dB
XLR: 0.3dB
Output Impedance
RCA: 50
XLR: 100
Product size: 22.2 x 17.6 x 4.8CM
Accessories
1 * D70 Pro OCTO
1 * USB cable
1 * AC cable
1 * Remote control
1 * Quick Start Guide
1 * Bluetooth Antenna
