- Dual ES9039SPRO Chips: The core of D90 III SABRE is driven by two ES9039SPRO chips, each audio channel operates independently, which provides a higher signal-to-noise ratio of 135dB, greater dynamic range and significantly reduced distortion <0.000045% THD N.
- Advanced CPLD Processing: D90III Sabre uses CPLD to process clock signals and optimize digital signals for incredible jitter suppression. Regardless of USB, optical, coaxial, AES input, jItter is as low as -160dB.
- New I/V conversion circuit: A new I/V conversion circuit built into the D90 III SABRE enables better audio reproduction quality. This circuit design provides lower distortion and lower noise while taking up less space.
- IIS interface: DAC IIS needs to match the IIS interface definition of the digital interface. The D90 III SABRE supports II mode selection: DSD FLAG 15, DSD FLAG 14, IIS DSDR LRCLK, IIS DSDR DATA, IIS PHASE STD, IIS PHASE REV. It is compatible with most digital interfaces.
- QCC5125 Bluetooth 5.1 LDAC: D90III SABRE is equipped with QCC5125 and Bluetooth 5. 1, supports LDAC/aptX-Adaptive/aptX- HD/AAC/SBC . It can support up to 96kHz/24bit, so that high-quality audio can be transmitted wireless to obtain music experience beyond CD level.
- Preamplifier function: In addition to the fixed output level DAC mode, the D90III SABRE also has a "preamp" mode. In this mode, the D90III SABRE can adjust the volume and output directly to the power amplifier or active speakers.

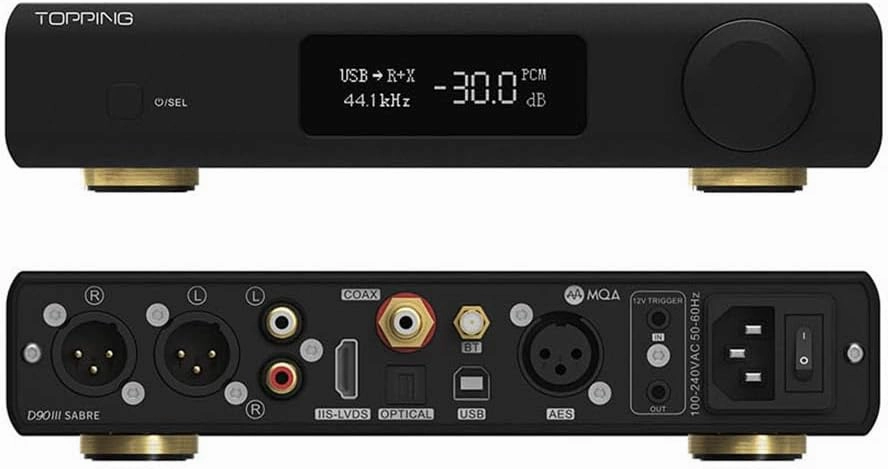

TOPPING D90III SABRE Full Balanced 2* ES9039SPRO USB/BT5.1/Optic/Coaxial/AES/IIS DA Converter MQA DAC
Product highlights
* Dual ES9039SPRO chips for superior audio quality
* Advanced CPLD processing for minimal jitter
* Innovative I/V conversion circuit for clarity
* Authentic sound reproduction with ultra-low THD N
* High-resolution wireless audio with Bluetooth 5.1
* Versatile output modes with XLR and RCA options
D90 III SABRE DAC parameters (LineOut/USB In@96kHz)
THD N (A-wt)
RCA: <0.00006% @1kHz
XLR: <0.000045% @1kHz
THD @90kBw (No-wt)
RCA: <0.0003% @20-20kHz
XLR: <0.0001%@20-20kHZ
SNR (A-wt)
RCA: 129dB @1kHz
XLR: 135dB @1kHz
Dynamic Range (A-wt)
RCA: 129dB @1kHz
XLR: 135dB @1kHz
Frequency Response
RCA: 20Hz-20kHz (0.1dB), 20Hz-40kHz (0.3dB)
XLR: 20Hz-20kHz (0.1dB), 20Hz-40kHz (0.3dB)
Output Level
RCA: 2.1Vrms @0dBFS (4V Mode), 2.6Vrms @0dBFS (5V Mode)
XLR: 4.2Vrms @0dBFS (4V Mode), 5.2Vrms @0dBF S (5V Mode)
Noise (A-wt)
RCA: <1.1uVrms
XLR: <1.1uVrms
Channel Crosstalk
RCA: - 133dB @ 1kHz
XLR: -149dB @1kHz
Channel Balance
RCA: 0.3dB
XLR: 0.3dB
Output Impedance
RCA: 50
XLR: 100
The size of the machine itself: Size: 22.2CM x 16.0CM x 4.5CM; Weight: 1.17Kg
Size after product packaging: Size: 37CM * 24CM * 9CM; Weight: 2.4KG
Accessories:
1* Remote control
1* USB cable
1* AC cable
1* Bluetooth Antenna
1* Product Information Card
