- Excellent performanceThe E70 VELVET uses AK4499EX DAC. New XMOS XU316 support DSD512 & PCM768kHz. The distortion of E70V is as low as -125db and the noise is no higher than 1.3uVrms. THD N of E70V is already lower than 0.00006% (A-weighted ).
- LDAC 24bit/96kHz Bluetooth5.1E70 has the certification of Hi-Res Audio Wireless and LDAC. It uses new QCC5125 to support LDAC / AAC /SBC/aptX /aptX LL/aptX HD/aptX Adaptive protocol by Bluetooth 5.1.
- Multiple output portsE70V has balanced XLR output and single ended RCA output. You can choose"XLR only ", "RCA only "or"XLR RCA"output to for different applications. In addition to the DAC mode with a fixed output level, the E70V also has a DAC preamplifier mode .

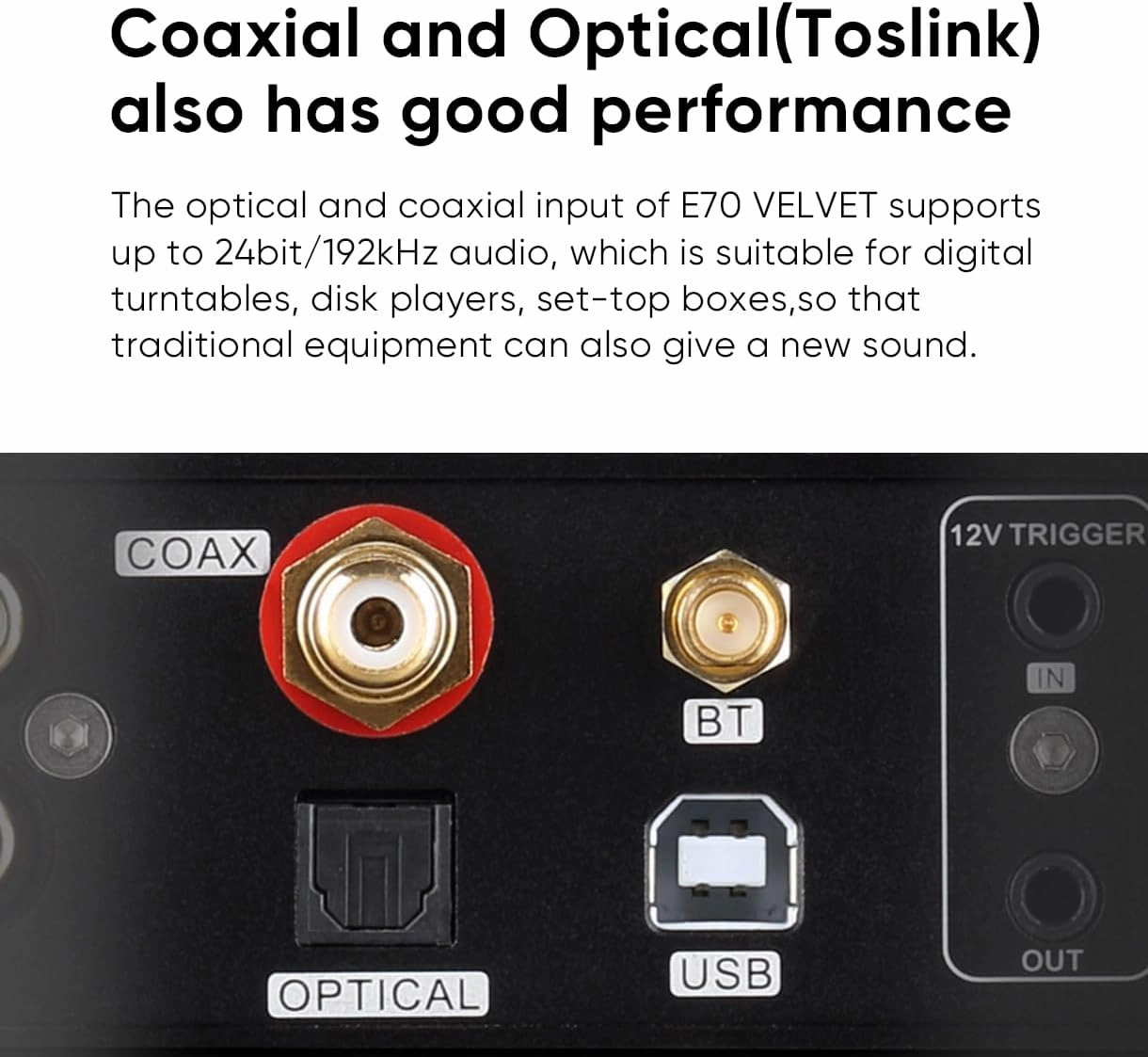

- Coaxial and Optical InputThe optical and coaxial input of E70V supports up to PCM24bit/ 192kHz and DSD512 audio, which is suitable for digital turntables, disk players, set-top boxes, and game consoles, so that traditional equipment can also give a new sound.
- Inputs support Auto On/off functionE70V auto On/Off function, it will automatically turn on and set to the input which the signal is valid. The E70v can be turned on and off synchronously with other devices equipped with a 12V Trigger interface.
- If you have any questions during use, AOSHIDA will quickly guide you to solve them.

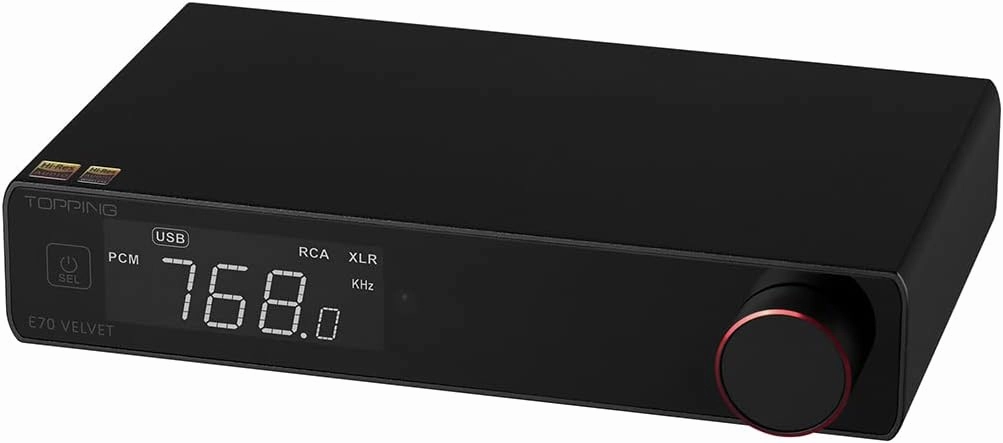

TOPPING E70 VELVET AK4499EX DAC XMOS XU316 DSD512 32bit/768kHz Decoder Bluetooth 5.1 USB/OPT/COAX Input RCA/XLR Output Audio Converter Hi-Res DAC with Remote Control
Compatible with various combinations:The L70 has a design language and style that perfectly matches the E70 VELVET and is sufficient to meet the needs of most headphones for earphones. The E70 VELVET and L70 can be switched on and off through the 12V Trigger interface, so that the L70 can be synchronized with the automatic or manual on/off of the E70 VELVET
Product parameters:
USBIN:DSD(Native):44.1kHz-768kHz/16bit-32bit;DSD(DoP):DSD64-DSD512;DSD64-DSD256
COAX/OPT IN: 44.1kHz-192kHz/16bit-24bit;
BT IN: AAC/SBC/APTX/APTX LL/APTX HD/APTX-Adaptive/LDAC
RCA OUT:
THD N (A-wt): <0.00008% @1kHz
THD@90kBw (No-wt): <0.0002% @20-20kHz
SNR (A-wt): 125dB @1kHz
Dynamic range (A-wt): 125dB @1kHz
Frequency Response: 20Hz-40kHz (0.3dB); 20Hz-40kHz (1.0dB)
Output Level: 2.1Vrms @0dBFS(4V Mode); 2.5Vrms @0dBFS(5V Mode)
Noise (A-WD): <1.3uVrms
Channel Crosstalk: -130dB @1kHz
Channel Balance: 0.3dB
Output Impedance: 50
XLR OUT:
THD N (A-wt): <0.00006% @1kHz
THD@90kBw (No-wt): <0.0002% @20-20kHz
SNR (A-wt): 131dB @1kHz
Dynamic range (A-wt): 131dB @1kHz
Frequency Response: 20Hz-40kHz (0.2dB); 20Hz-40kHz (0.8dB)
Output Level: 4.2Vrms @0dBFS(4V Mode); 5.0Vrms @0dBFS(5V Mode)
Noise (A-WD): <1.3uVrms
Channel Crosstalk: -143dB @1kHz
Channel Balance: 0.3dB
Output Impedance:100
Size: 20.0cm x 13.8cm x 4.4cm
Contents list
1*E70 VELVET
1*Remote control
1*USB cable
1*AC cable
1*Bluetooth antenna
1*User manual
1*TOPPING card
