- SWITCHED PDU: 16/20A single-phase 208/220/230/240V switched power distribution unit provides full remote power monitoring and control for network devices. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be programmed for power-up and power-down sequences.

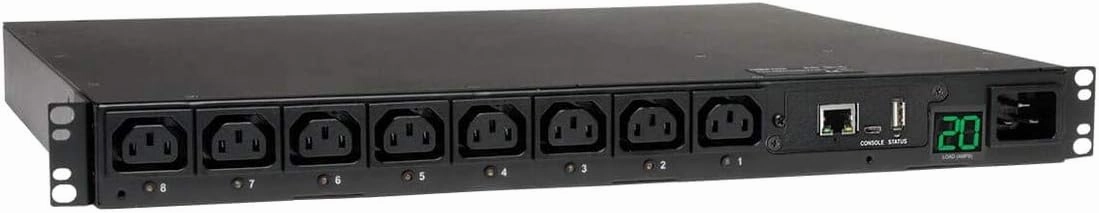

- 8 OUTLETS: 1U horizontal rackmount PDU features 8 individually swtiched C13 outlets with included plug-lock retention sleeves. C20 inlet, and 8 foot cord with L6-20P plug adapter.
- RUGGED BUILD: Built with all-metal housing and enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets.
- VERSATILE INSTALLATION: The PDUMH20HVNET mounts horizontally in any EIA-standard 19 in. rack, and occupies just 1U of space. Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats, and mounting ears are reversible for front or rear facing rackmount installation.
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
