- MCP4725 DAC Converter: Provide 12 -bit digital model conversion accuracy, which can accurately convert digital signals into analog signals, such as audio signal processing, sensor calibration
- Working voltage: 2.7 ~ 5.5V
- Built -in EEPROM: The input code and configuration information that can be used to store DACs are suitable for applications that need to save DAC device settings during power off (although EEPROM can save settings, it has limited number of writing times, generally about 20,000 times)
- Support I2C serial interface: support standards (100kbps), fast (400kbps), and high -speed (3.4Mbps) (integrated 4.7k pull -up resistance, connecting multiple devices on the same I2C bus, you need Value to ensure the stability of I2C communication)
- Increase the external A0 address pins: When the system needs to use multiple MCP4725 modules, you can avoid the address conflict by setting different A0 pin levels. At most eight available addresses can be provided

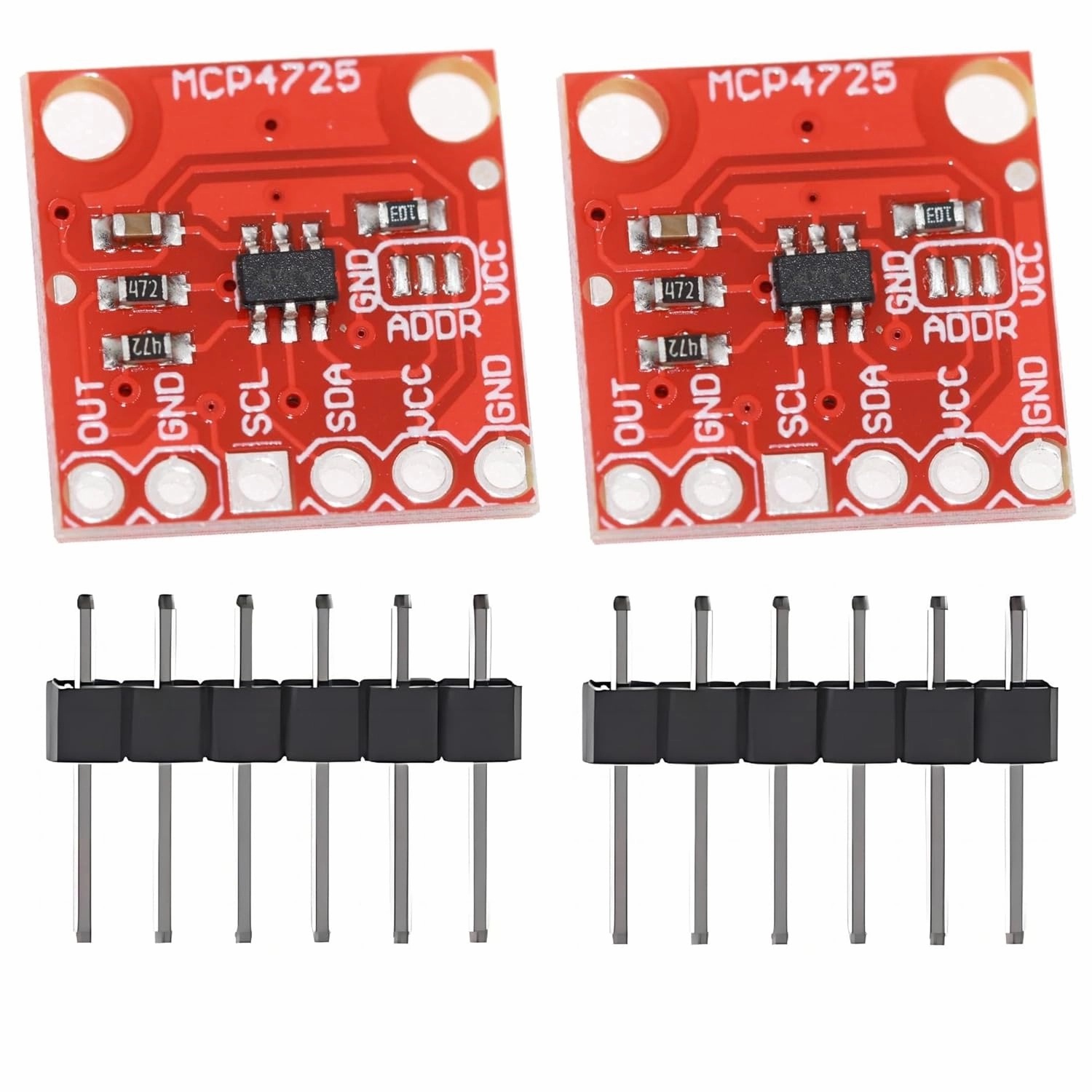

WWZMDiB 2 Pcs MCP4725 DAC Converter Module 12-bit I2C IIC Compatible with for Arduino Raspberry Pi ESP32 STM Digital to Analog Converter board
- Product Dimensions : 0.59 x 0.59 x 0.04 inches; 0.63 ounces
- Date First Available : February 11, 2023
- Manufacturer : WWZMDiB
- Country of Origin : China
