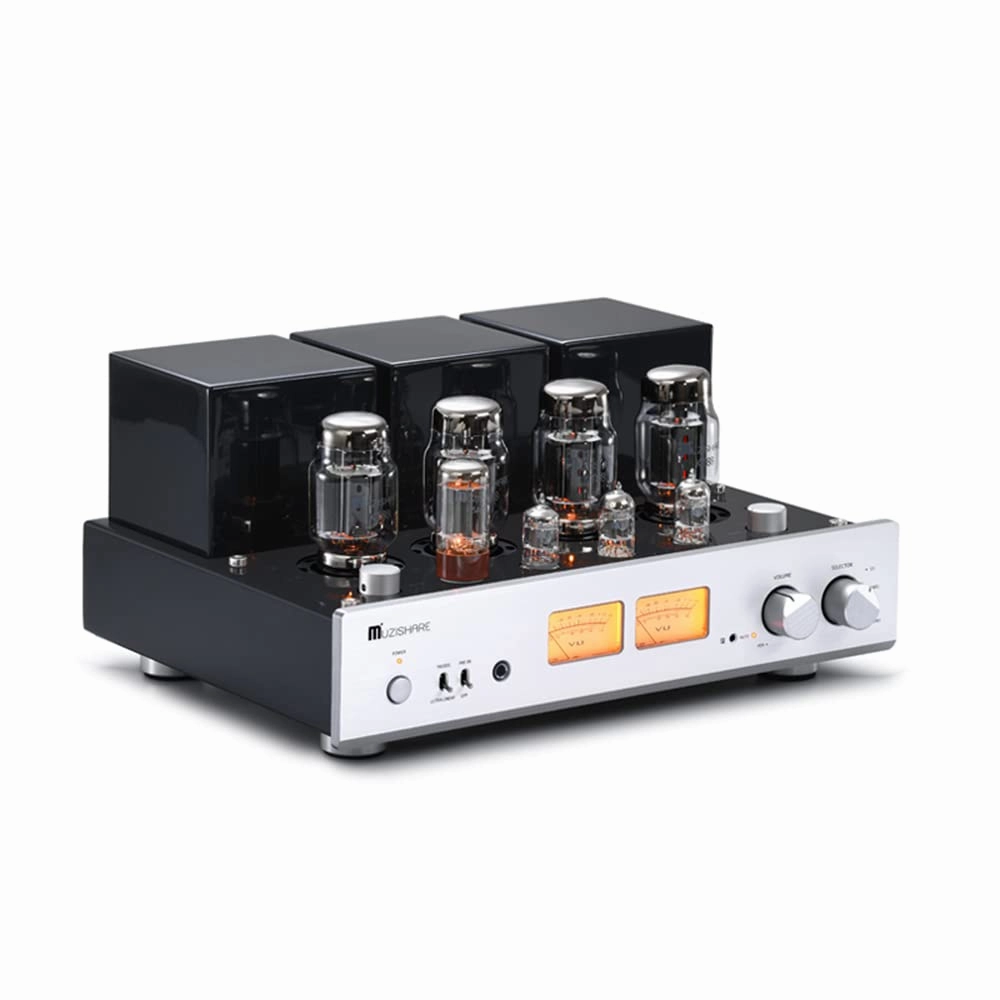

- MUZISHARE X7 Upgraded version. Upgraded the internal coupling capacitor, is the designer to debug the custom-made silver film capacitor, relative to the classic version of the extension, control, density is better.
- MUZISHARE X7 is an integrated Amplifier. This is also a Power Amplifier (there is a group pre-amp input), a Headphone amplifier and this is a amplifier for Phono player too, direct link your phono player to this amplifier to output to speakers.
- Pure Handmade,point to point hand welding using two high-quality wide-frequency high-quality Japanese EI output transformer using a high-power Z11 core toroidal power transformer dedicated designed for the machine voltage amplification and promote are used tube 5AR4 for rectifier power supply.
- Use 12AX7 and 12AU7 vacuum tube for voltage amplification and phase inversion,use KT88 vacuum tube to do AB1 push-pull power amplification; Mute delay function when turn on the amp(about 30 seconds) the choice of Japanese ALPS motor potentiometer
- Provide Triode and Ultralinear selection function: Triode work mode. soft. pure and sleek. suitable for enjoying vocals. strings Music and other types of music; Ultralinear work. the sound of open. unrestrained. the momentum is good. for large scenes. large dynamic type of music. Peripheral power tube current adjustment knob and current display meter. With pure power amplifier features. can be linked the pre-amp signal input. with the phono function. can be connected to the Phono player
Warm reminder: You should take about 100h time to operate the amp.RUN-IN to the amp gives it's best and stable sound.so during the first 100h use time the sound maybe is not the best,you can also use your own run-in method.
Specification:
FTC Power output18W18WRMS Triode (20Hz - 20kHz, 8 ohms, THD N: 1%)
23W23WRMS UL (20Hz - 20kHz, 8 ohms, THD N: 1%)
Output Power rating (not tested under the FTC standard): 25W25WRMS Triode
45W45WRMS UL
THD N:0.19%(1W/1kHzrated output power less that 5%)
Frequency response14Hz~20kHz(-1dB)
S/N Ratio92dB A Weighted
Input Sensitivity280mV0db 520mV(prein)
Input Impedance100k
Dimension (WxDxH) 410mm x 335mm x 198mm
Output Impedance48
Tube Complement12AX7112AU72KT8845AR41 Net Weight22.5kg
Gross weight: 25kg
Power supply: 100V - 120V 60Hz/50Hz.
There is a selective switch to set it to be 220V-240V
Working conditions: Temperature: 0 ~ 40 Humidity: 20% ~ 80%
Storage conditions: Temperature: -20 ~ 70 Humidity: 20% ~ 90%
- Is Discontinued By Manufacturer : No
- Product Dimensions : 16.14 x 13.19 x 7.8 inches; 54.75 Pounds
- Date First Available : January 14, 2019
- Manufacturer : MUZISHARE
- Country of Origin : China
