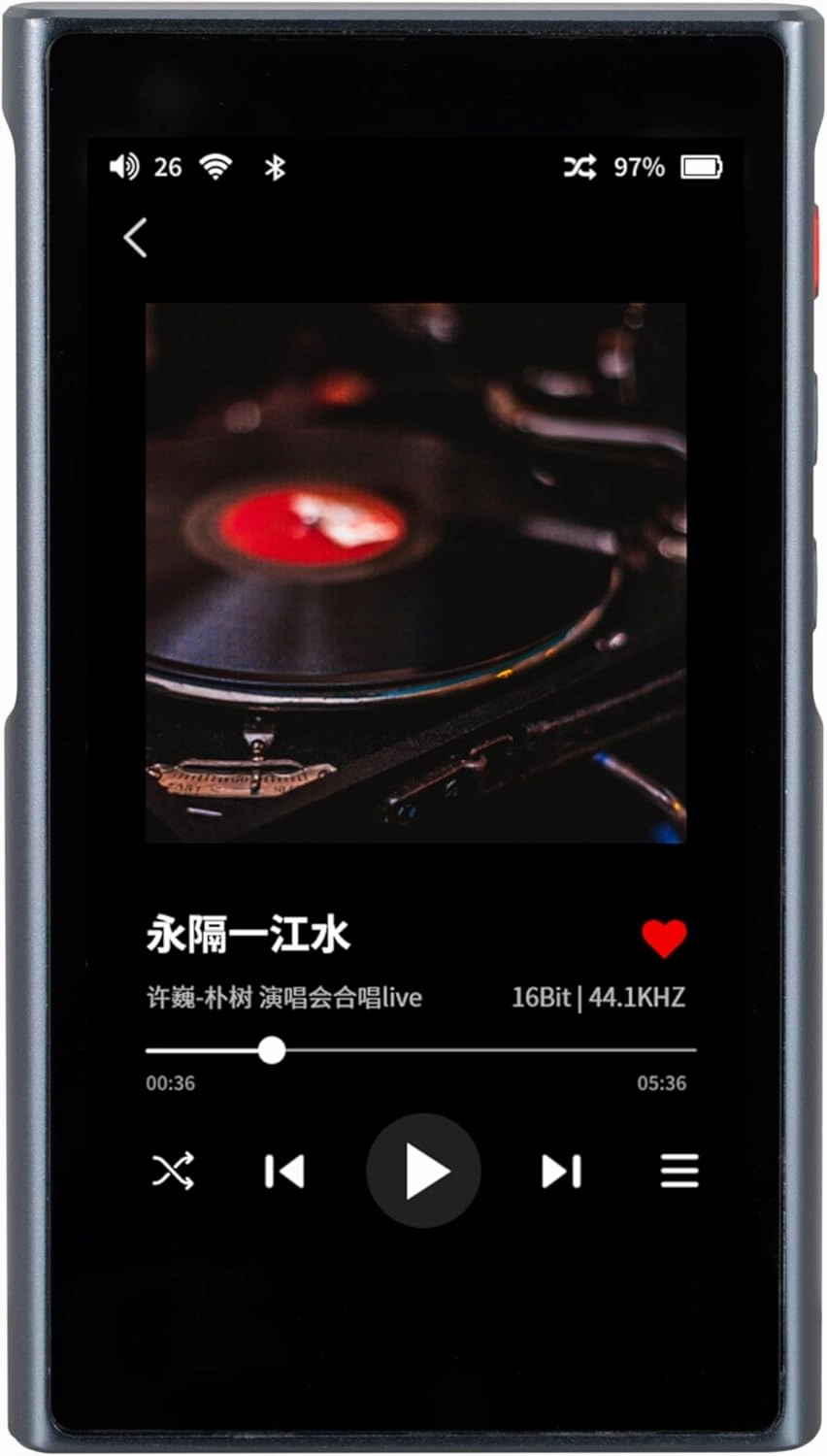

- The X5 is a Hi-Fi lossless music player equipped with a touch screen. It features a 3.5-inch IPS high-definition screen, providing clear image quality. Its DAC chips are employs two CS43131 chips to form a true balanced output circuit. The decoding supports lossless formats such as DSD, DXD, WAV, APE, FLAC, and AIFF, with a maximum sampling rate of 384kHz/32Bit and DSD256
- X5 supports functions like EQ, voice search for songs, and Car-play mode. Its output power reaches 270mW, enabling it to effortlessly drive many types of headphones, making it the perfect spiritual companion for staying at home, working in the office, or traveling
- SUPPORTS LARGE CAPACITY MEMORY CARDS: Supports up to 1TB TF/Micro SD card, It can store more than 26000 WAVor 40000 FLAC/APE lossless songs, calculated as 4 minutes for a single song, 160000 minutes without repeating any, enjoy the wonderful feeling of music
- TWO-WAY BLUETOOTH 4.2: It supports SBC,AAC,and LDAC formats. It can serve as a sound source to transmit Bluetooth music signals and connect to Bluetooth headphones, speakers, etc. It can also connect to mobile phones and computers via Bluetooth and transform into a Bluetooth decoder.
- USB DAC FUNCTION: When connected to a computer's USB port, it can not onlytransfer music files but also can be as a USB DAC, improving the audio quality of the computer's output. It is an ideal choice for both listening to music and watching movies.
Features
1High-definition 3.5-inch IPS touch screen.
2It supports lossless music formats such as DSD, DXD, WAV, APE, FLAC, AIFF, etc.
3It supports a maximum sampling rate of PCM 384kHz/32Bit and DSD256.
4Support CUE, M3U, and M3U8 files.
5It supports FAT32, EXFAT, and NTFS formats TF card. The maximum supported capacity is 1TB.
6It has Bluetooth receiving and transmitting functions and supports SBC, AAC, and LDAC formats.
7It supports USB DAC, plug and play.
8It supports Car-play function.
9It has a sound effect adjustment function and supports custom adjustment.
10It has a 4.4 balanced output, the output power up to 270mW.
11It has the function of searching for songs by voice.
12Its outer shell is made of aluminum alloy and processed by CNC, possessing extremely strong anti-interference capabilities.
MAIN PARAMETER
PowerSource: built-in 3.7V/2600mAh lithium polymer battery
Screen: 3.5-inch IPS high-definition screen with a resolution of 480800 pixels.
Operation: Multi-touch
TFCard Support: Supports up to 1TB TF/Micro SD cards (FAT32, EXFAT, NTFS).
Supported Music Formats:
DSD: DSD64-256(DSFDFFISO)
WAV: 16-24Bit/44.1k-384kHz
AIFF: 16-24Bit/44.1k-192kHz
FLAC: 16-24Bit/44.1k-192kHz
APE: 16-24Bit/44.1k-192kHz
MP3: 16Kbps-320Kbps
WMA, OGG, M4A, AAC
Bluetooth Version: 4.2
Bluetooth Functions: Input, Output
Bluetooth Codes: SBC, AAC, LDAC
USB DAC: Plug and Play
Suitable Headphone Impedance: 16-300
Battery Life: About 10 hours
Charging Time: About 3 hours
OUTPUT PARAMETER
Unbalanced Headphone Output (3.5mm)
Output power: 200mW(32/THD N<0.001%)
Frequency Response: 20Hz~20kHz(0.5dB)
SNR: 115dB
Crosstalk:>75 dB
THD N: 0.001%@1kHz(32@1kHz)
Balanced Headphone Output (4.4mm)
Output power: 270mW(32/THD N<0.001%)
Frequency Response: 20Hz~20kHz(0.5dB)
SNR :120 dB
Crosstalk:>115dB
THD N: 0.0009%@1kHz(32@1kHz)
Line Out(3.5mm)
Output level: 2.0Vrms
Frequency Response: 20Hz~20kHz(0.5dB)
SNR: 115dB
Crosstalk:>108 dB
THD N: 0.001%@1kHz
