- It is applicable to power weak signals into line-level signals. The amplification multiples are 10 times (20dB). It can directly drive the headphone to work (the headphone output port can't be used with other output ports at the same time), the max headphone impedance supported is 16 ohm.
- Using the classic Dual OP AMP NE5532, high frequency electrolytic capacitor, noise reduction circuit design, no background noise, effective gain audio, improve sound quality.
- Input: RCA (L / R) 3.5mm, Output: RCA (L / R) 3.5mm headphones, Poowered by DC 9-19v, static current about 8Ma. With volume adjustment knob, the volume can be adjusted freely.
- Small size, easy to carry and use. The size: 3.42in 1.96in 1.45in (87mm 50mm 37mm). It is a preamp and cannot be used as a power amplifier to drive passive speakers working.
- Widely compatible with all audio devices. Input: DVD, CD, set-top box, MP3, TV, mobile phone, computer, tablet, microphone, phono turntable, sound card, guitar, bass, electronic instrument, game console or other devices. Output: speakers, subwoofer, Sound Blaster, reverberator, AV receiver, Post-Amp, Headphones, etc.

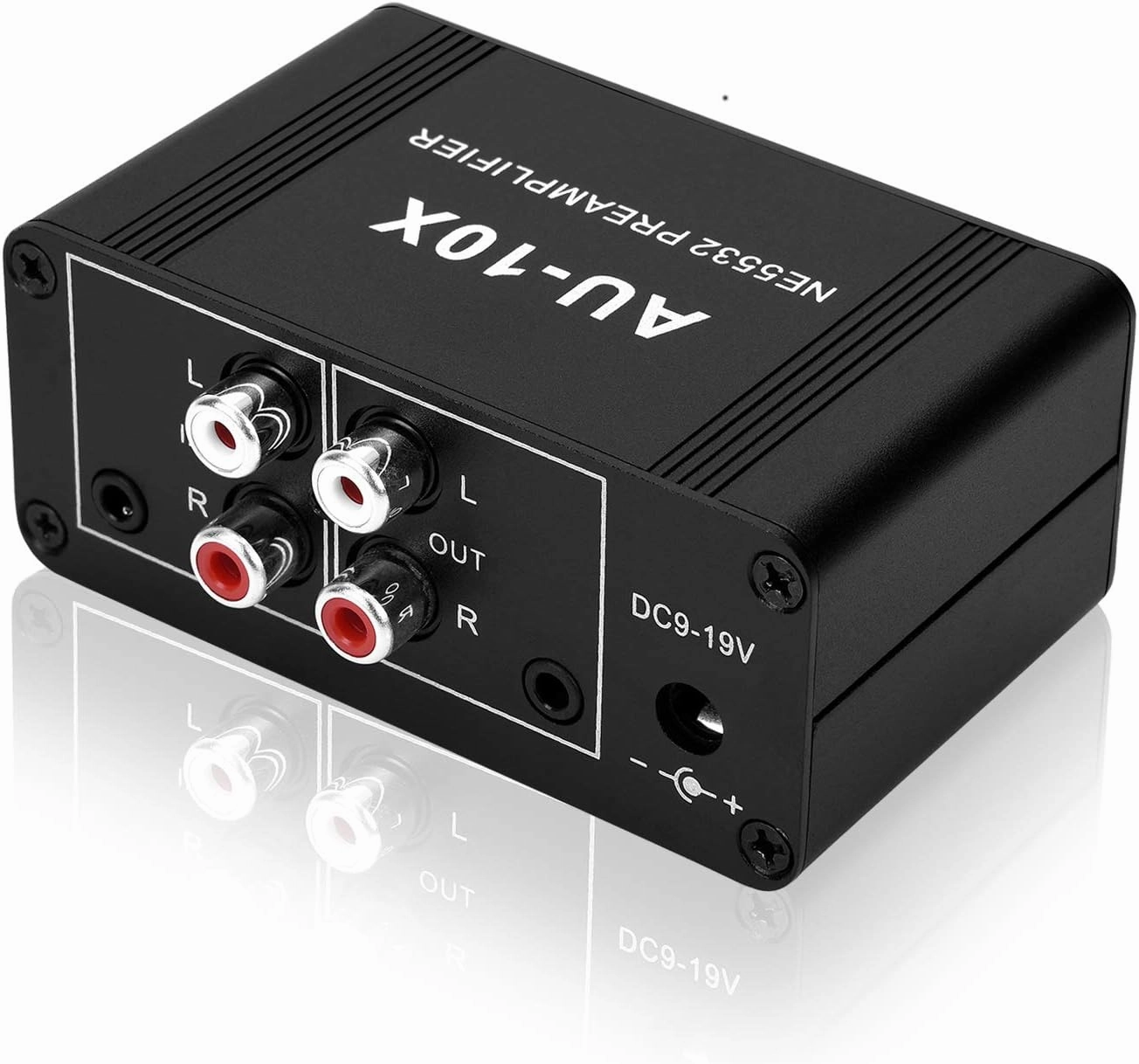

Product Name: Mini stereo audio preamplifier
Model No. : AU-10X
Input: RCA (L / R) 3.5mm
Output: RCA (L / R) 3.5mm headphones
Size: 3.42in 1.96in 1.45in (87mm 50mm 37mm).
Powered: DC 9-19V
Compatible input devices: DVD, CD, set-top box, MP3, TV, mobile phone, computer, tablet, microphone, phono turntable, sound card, guitar, bass, electronic instrument, game console or other devices.
Compatible output devices: Active speakers, Desktop speakers,Subwoofer, Sound blaster, Reverberator, AV receiver, Post-Amp, Headphones, etc.
It is a preamp and cannot be used as a power amplifier to drive passive speakers working.
What's in the box:
AU-10X preamplifier * 1 pcs
DC power adapter * 1 pcs
